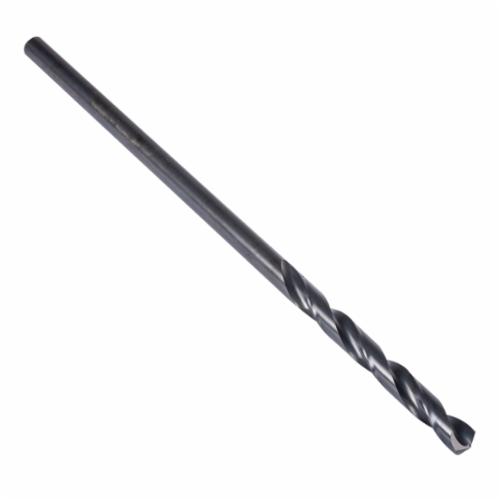

Precision Twist Drill 6001355

Precision Twist Drill 6001355 502-12 Type B Extra Length Heavy Duty Aircraft Extension Drill, B Drill - Letter, 0.238 in Drill - Decimal Inch, 135 deg Point, HSS

  • TIEPN: PTD 059202
  • MPN: 6001355
  • UPC: 086071592026
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Precision Twist Drill Aircraft Extension Drill, Type B Extra Length Heavy Duty, Series: 502-12, B Drill - Letter, 0.238 in Drill - Decimal Inch, 12 in Overall Length, 4XD Cutting Depth, 2 Flutes, Spiral Flute, 2-3/4 in Flute Length, 0.238 in Shank, Straight Shank, 135 deg Point, Split/Self-Centering Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Steam Oxide, Applicable Materials: Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Unalloyed Titanium, Alloyed Titanium, Nickel

Applicable Materials      :      Plain Carbon Steel, Alloy Steel/Hardened and Tempered Steel, Free Machining Stainless Steel, Austenitic, Ferritic + Austenitic, Martensitic, Lamellar Graphite, Nodular Graphite/Malleable Cast Iron, Unalloyed Titanium, Alloyed Titanium, Nickel
Cutting Depth      :      4XD
Cutting Direction      :      Right Hand
Cutting Edge Material      :      HSS
Finish      :      Steam Oxide
Flute Length      :      2-3/4 in
Flute Type      :      Spiral
Number of Flutes      :      2
Overall Length      :      12 in
Point Type      :      Split/Self-Centering
Series      :      502-12
Shank Size      :      0.238 in
Shank Type      :      Straight
Type      :      Type B Extra Length Heavy Duty
Drill Size - Letter      :      B
Drill Size - Decimal Inch      :      0.238 in
Point Angle      :      135 deg
Material      :      HSS
  • High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and non-ferrous materials
  • Oxide prevents chip building, galling and welding on the work piece, it is commonly used on low carbons, stainless steel and ferrous metals web thinned
  • Tapered web configuration
  • No coolant channe
