Bessey® S-10
send Send print Print

Bessey® S-10

Bessey® S-10 Light Duty Portable Hobby Mini Vise, 2-1/4 in L x 12 in H, 4 in Jaw Opening, 4 in Capacity

  • TIEPN: BTN S-10
  • MPN: S-10
  • UPC: 091162055014
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

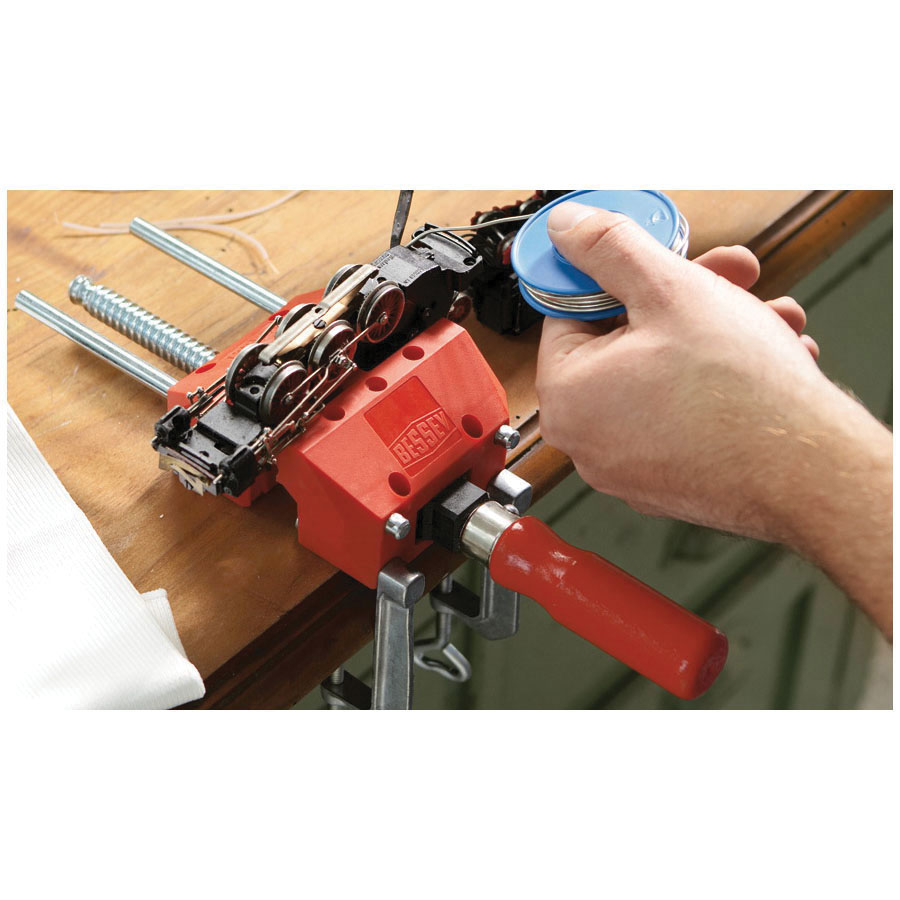

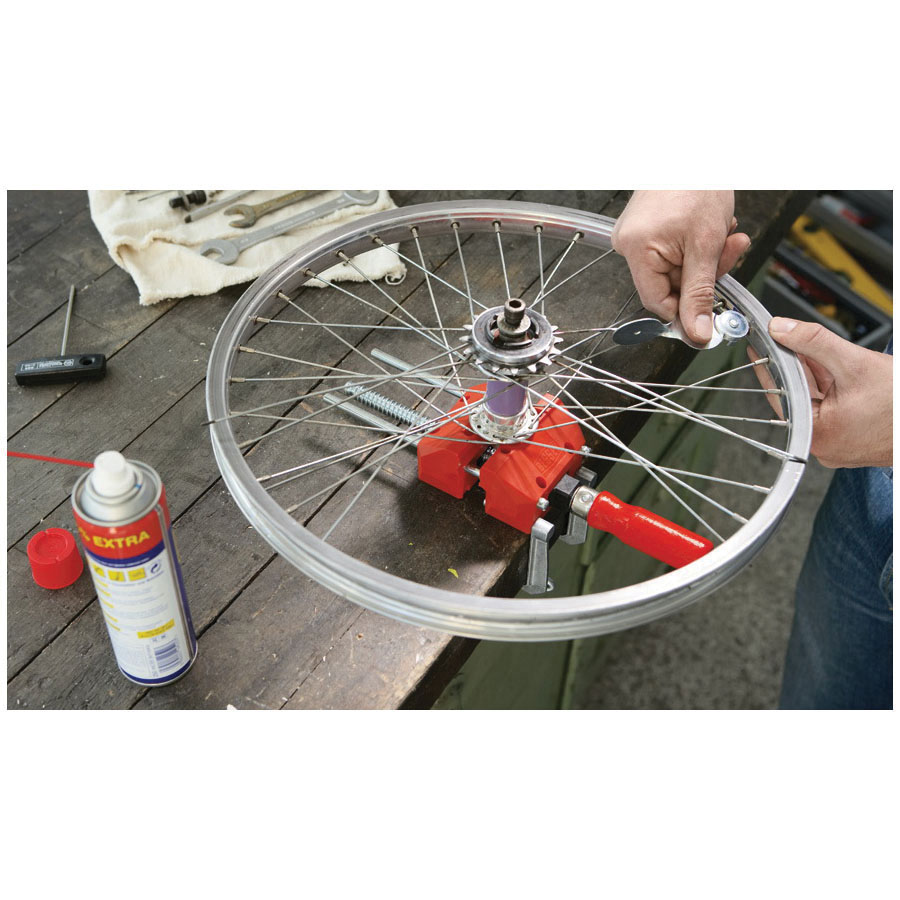

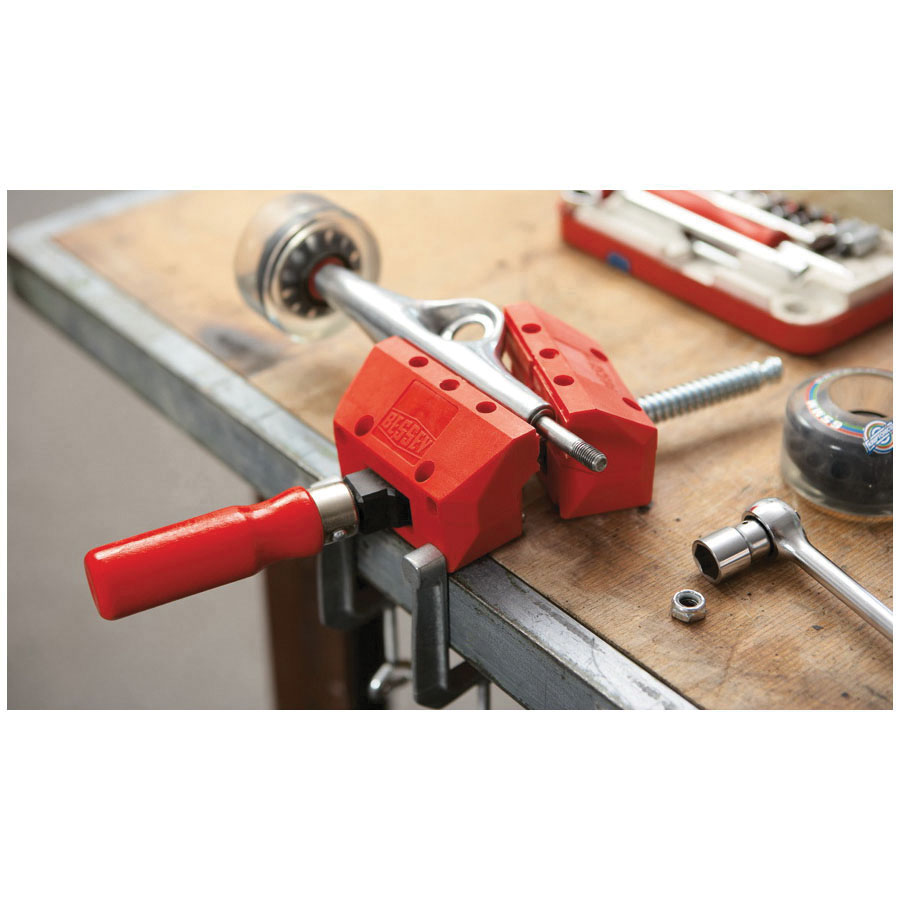

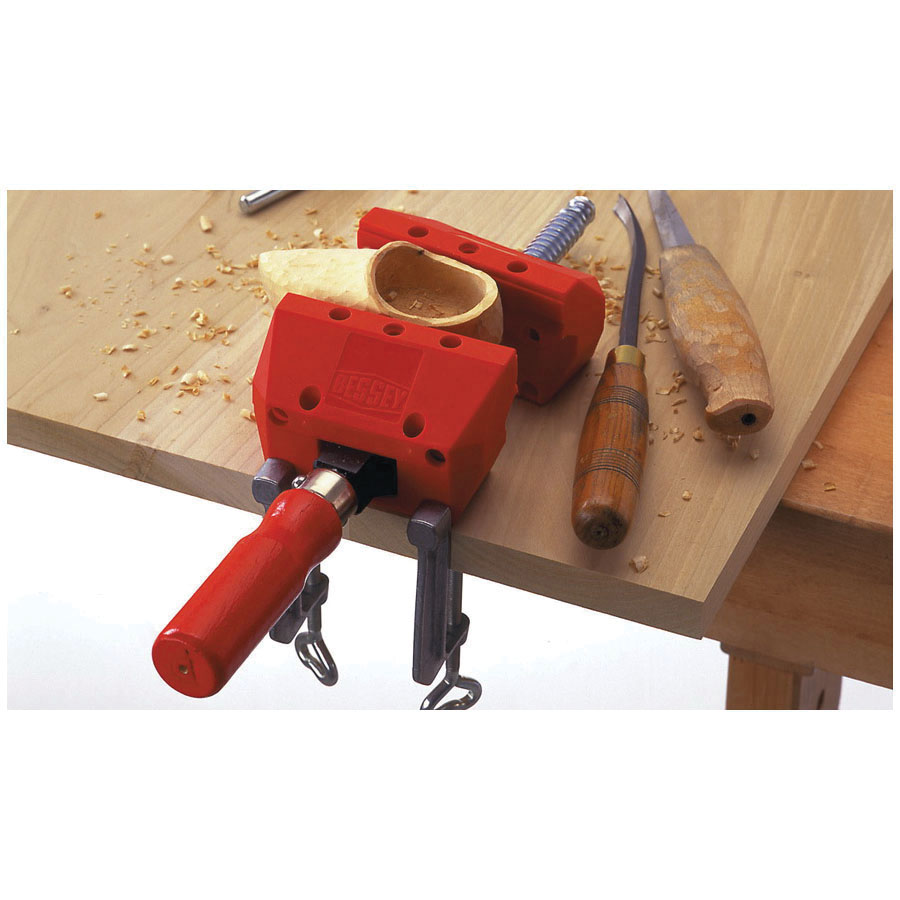

The Bessey® S-10 mini vise with table clamps is very versatile and extremely light weight. Clamping faces are grooved to aid in holding rounded objects. For holding objects with none parallel opposing facets you can remove the parallel guide bars allowing the jaws to swivel.

Bessey® Hobby Mini Vise, Light Duty Portable, 2-1/4 in Overall Length, 12 in Overall Height, Smooth with Horizontal and Vertical V Grooves Jaw, 4 in Jaw Opening, 3-5/8 in Jaw Width, 1 in Throat Depth, Stationary Base, 25 deg Rotation, 4 in Capacity

Base Type      :      Stationary
Jaw Type      :      Smooth with Horizontal and Vertical V Grooves
Jaw Width      :      3-5/8 in
Rotation Angle      :      25 deg
Throat Depth      :      1 in
Type      :      Light Duty Portable
Overall Length      :      2-1/4 in
Overall Height      :      12 in
Jaw Opening      :      4 in
Capacity      :      4 in
  • Low weight
  • Parallel clamping with guide rods
  • Clamping at an angle without guide rods (max 25 deg)
  • Easy to attach, with 2 table clips supplied
  • Portable mini vise can be clamped to a flat work surface with TK-6 table clamps
  • Non-marring glue resistant jaws
  • Removable, galvanized bars allow jaws to swivel to accommodate irregular shapes
