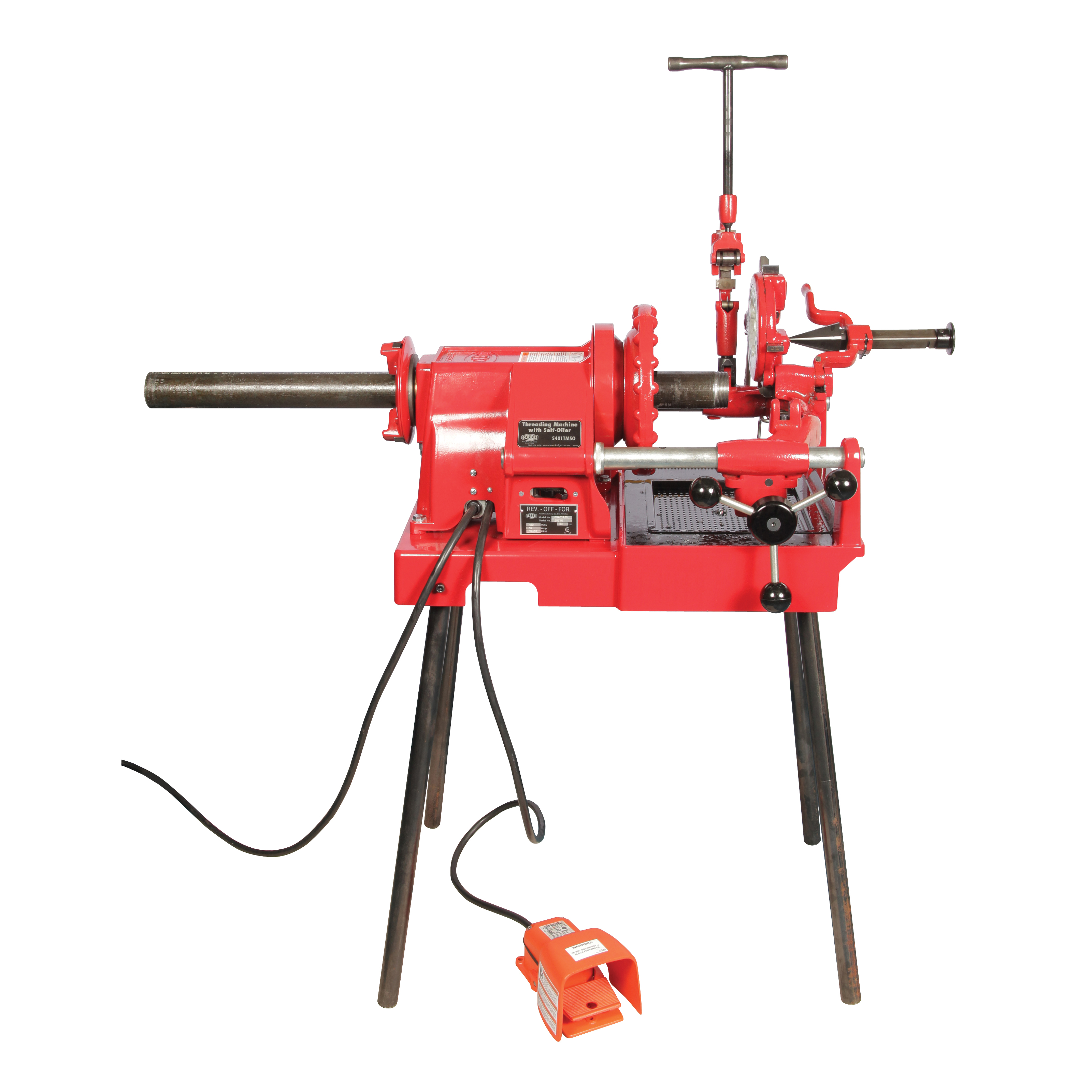

Reed's 1/2 hp, electric-motor-driven 5401TMSO threading machine centers and chucks pipe and conduit and rotates it while cutting, reaming and threading operations are performed. Its through head oiling system features a self-priming pump that generously floods the pipe with oil while threading. Threading capacity for bolt is 1/4 in to 2 in and for pipe is 1 /8 in to 2 in nominal. Plenty of carriage clearance to allow easy cleanup and removal of cuttings and chips. Handy three-spoke hand wheel with a gear and rack system easily moves the carriage and starts the dies onto the pipe for threading. System includes threading machine with footswitch, legs, die head and dies (NPT or BSPT) and cutting oil.

Reed Threading Machine, Electric, Bare Tool, 1/8 to 2 in, 38 rpm, 1/2 hp, 120 VAC, 1/4 to 2 in Bolt

• Self-priming pump generously floods the pipe with oil while threading
• Convenient open work space features a large, integral oil reservoir and an easy-to-remove chip collection tray

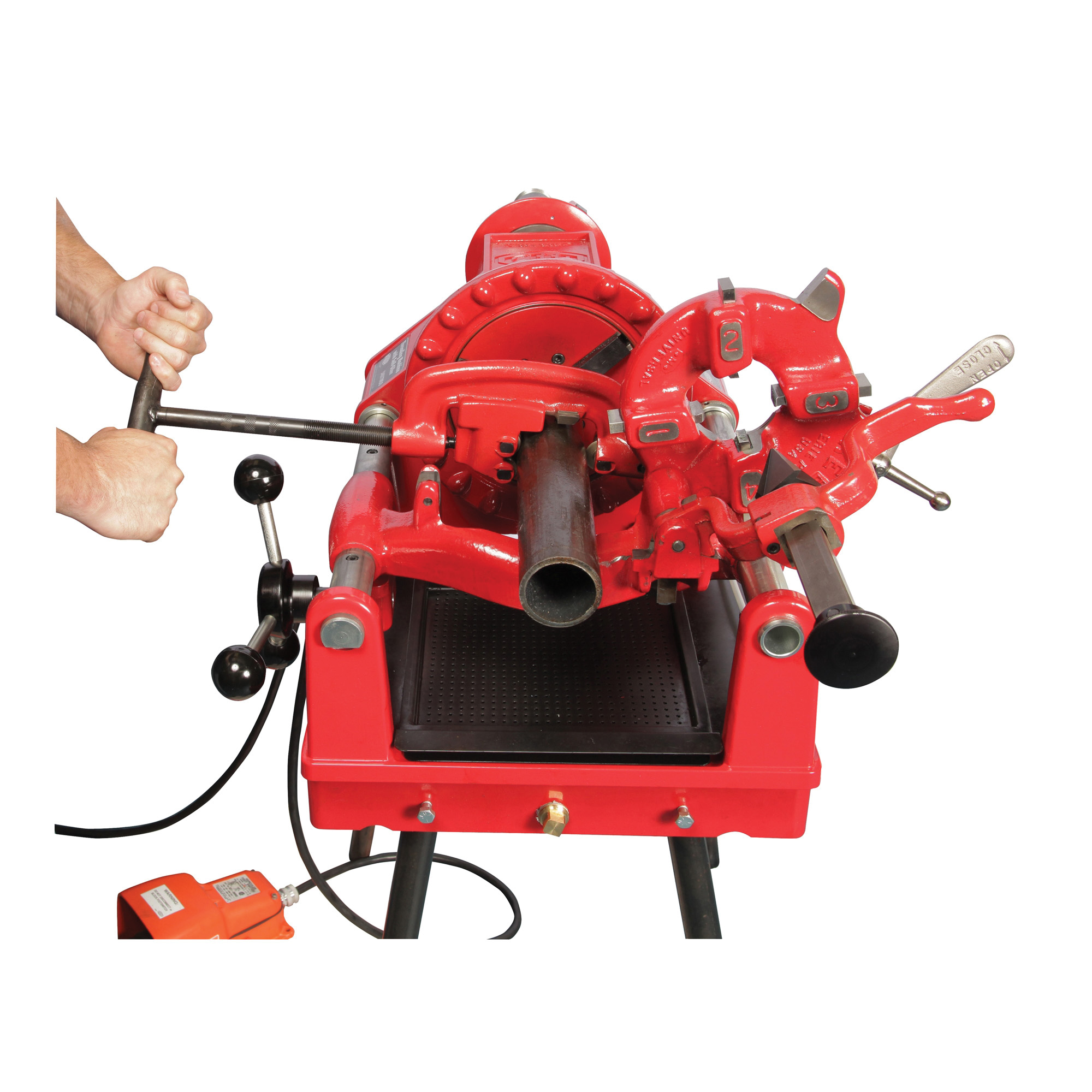

• Three-spoke handwheel easily moves the carriage and starts the dies for threading
• Self-oiler feature allows operator to concentrate on the pipe work
