Union Butterfield® 5160167

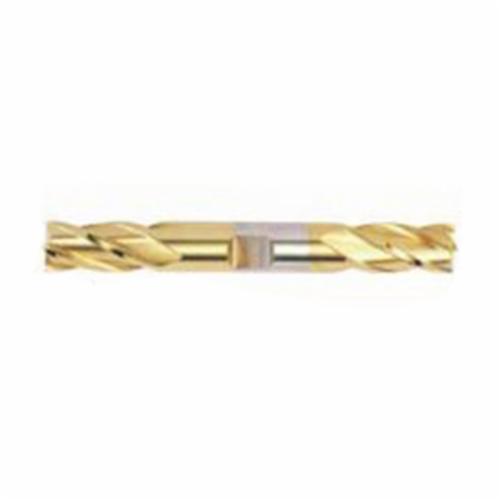

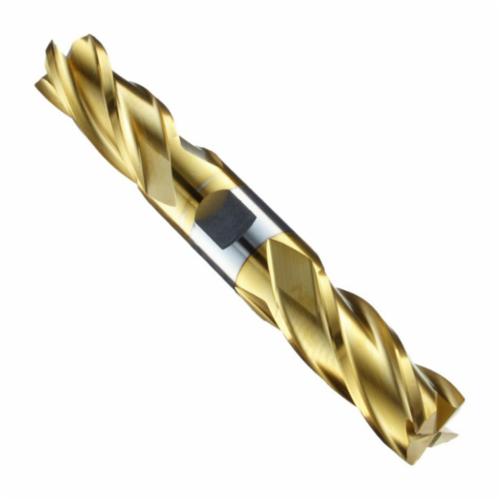

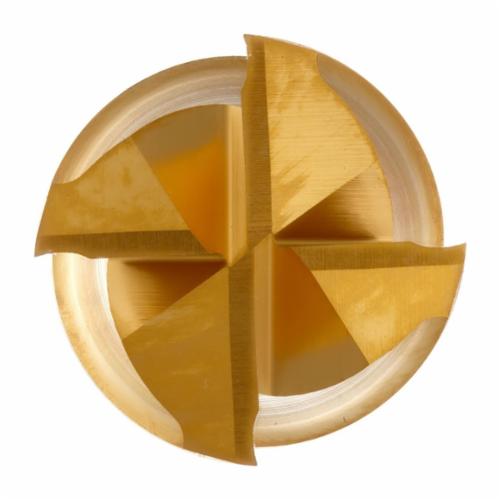

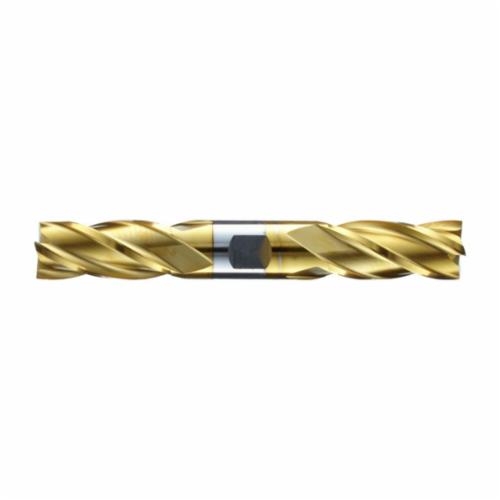

Union Butterfield® 5160167 TN948 Center Cutting Double End Regular Length Square End End Mill, 1/2 in Dia Cutter, 1 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 4-1/2 in OAL, TiN Coated

  • TIEPN: PTD 5160167
  • MPN: 5160167
  • UPC: 698464008627
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Union Butterfield® End Mill, Center Cutting Double End Regular Length Square End, Series: TN948, 1/2 in Diameter Cutter, 4-1/2 in Overall Length, 1 in Length of Cut, 4 Flutes, Spiral Flute, 1/2 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight Shank, HSS, TiN Coated

Cutting Direction      :      Right Hand
Flute Type      :      Spiral
Helix Angle      :      30 deg
Material      :      HSS
Series      :      TN948
Shank Type      :      Straight
Type      :      Center Cutting Double End Regular Length Square End
Cutter Diameter      :      1/2 in
Length of Cut      :      1 in
Number of Flutes      :      4
Shank Diameter      :      1/2 in
Overall Length      :      4-1/2 in
Finish      :      TiN Coated
  • Double end square end mills create sharp, unrounded cuts and have cutting edges on both ends for longer tool life
  • Four flutes produce a better finish than fewer flutes
  • Titanium nitride (TiN) is a general purpose coating that combines high-temperature resistance and increased hardness compared to uncoated end mills
  • High speed steel is compatible with a variety of materials
  • Center cutting design allows the end mill to plunge into material like a drill bit while also performing conventional surface milling
  • Normal tolerance
  • For use with aluminum/aluminum alloys, cast iron, nickel/nickel alloys, steel/steel alloys, titanium/titanium alloys
