JET belt drive bench lathes feature an enclosed gearbox with helical cut gears for noise reduction and smear operation. The full length splash guard on all sizes prevents hot chips and fluid from contaminating the work area and the quick-change gearbox allows for fast and easy gear changes for metric threading.

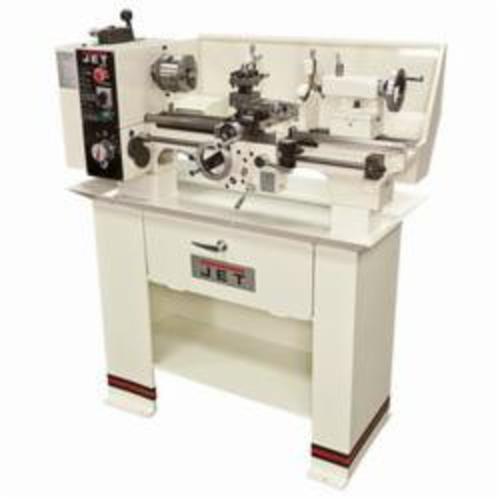

JET® Bench Lathe, Belt Drive, 9 in Swing Over Bed, 5-5/16 in Swing Over Cross Slide, 20 in Distance Between Centers, 4-1/2 in Bed Width, #2 Morse Taper Tailstock Taper, #3 Morse Taper Spindle, 1-1/2-8 Spindle Nose, 130 to 2000 rpm Spindle Speed, 6 Spindle Speed, 4-3/8 in Cross Travel, 1-9/16 in Tailstock Spindle Travel, 16 in Carriage Travel, 1-7/8 in Compound Travel, 0.037 in Maximum Longitudinal Feed Rate per Revolution, 3/4 hp, 115 VAC, 37 in L x 18-3/4 in W x 17-3/8 in H

• Spindle supported by precision tapered roller bearings
• Hardened and ground bedways
• Reversing switch for added versatility
• Backlash adjustments in the carriage are easily adjustable
• Quick-change gearbox provides a wide range of inch and metric threads
• Power longitudinal feed allows threading and reverse threading
• Standard 1-1/2 x 8 TPI spindle mount allows for many aftermarket accessories
• Tailstock is adjustable for taper cuts
• Full length splash guard
• 4 in 3 jaw chuck with threaded back plate
• 7 in 4-Jaw chuck with threaded back plate
• Metric change gears, centers
• Threading dial
