RIDGID® 55083

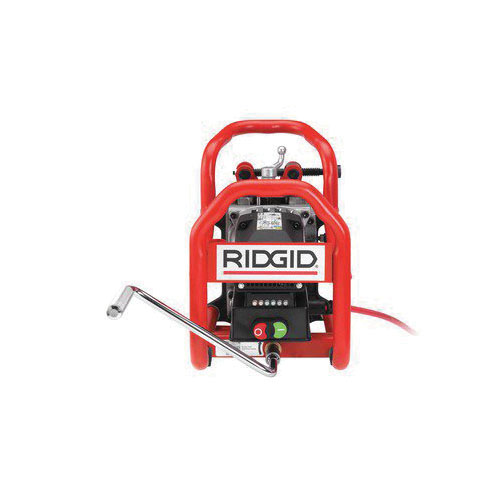

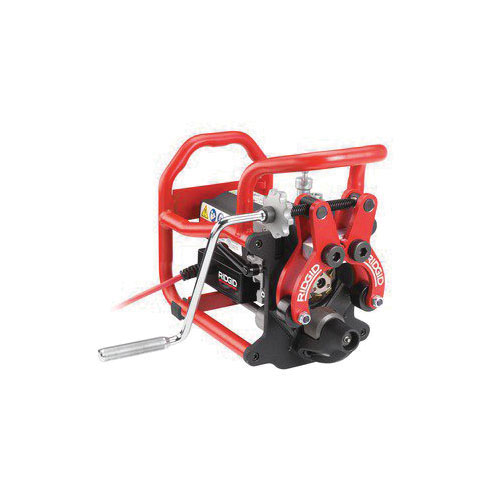

RIDGID® 55083, B-500 Transportable Pipe Beveller With 45 deg Cutter Head, 4 in Pipe, 1/2 in THK Pipe Wall, Universal Motor, Steel Frame Body, 115 VAC, 950 rpm Speed

  • TIEPN: RID 55083
  • MPN: 55083
  • UPC: 095691550835
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

The B-500 Transportable pipe Beveller produces high quality bevels in 45 seconds without flames or sparks. The compact design quickly mounts to pipe 4 in and up with a maximum wall thickness of 1/2 in, and creates consistent bevels in a single pass.

RIDGID® Pipe Beveller, Transportable, 4 in, 1/2 in Pipe Wall Thickness, Universal Motor, 115 VAC, 950 rpm, Steel Frame Body, 15.8 in L x 11.5 in W x 13.3 in H

Dimensions      :      15.8 in L x 11.5 in W x 13.3 in H
Type      :      Transportable
Pipe Capacity      :      4 in
Pipe Wall Thickness      :      1/2 in
Motor Type      :      Universal
Body Material      :      Steel Frame
Voltage Rating      :      115 VAC
Speed      :      950 rpm
  • Set-up and bevel 10 in Dia SCH 40/STD pipe in 45 sec
  • Pipe is cool to touch immediately following beveling
  • Accurate bevel angle around diameter of the pipe allows for optimal number of cover passes
  • Adjustable land width from 0 to 3/16 in to fit welders requirements
  • Produces a machined finish due to 6 replaceable cutter inserts working simultaneously
  • Fast to set-up and operate
  • Patent-pending clamp system firmly secures tool to the pipe

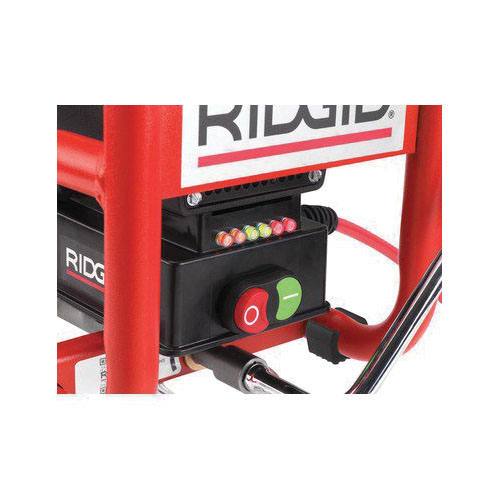

  • Speed monitoring with led indicators for optimal cutter performance
  • Spark free operation
