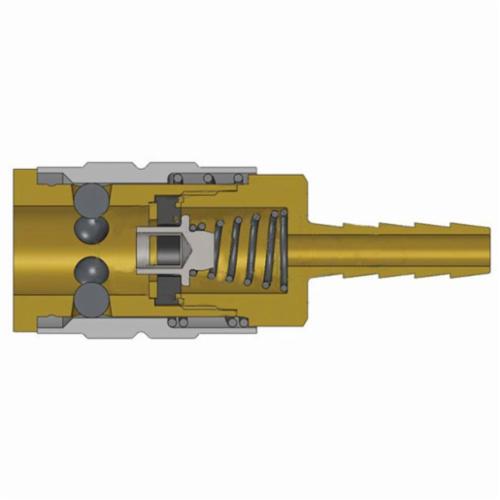

Dixon® Pneumatic Coupler, Semi-Auto, Series: DQC DF Industrial, Fitting/Connector Type: Coupling, 1/4 in Nominal, Coupler x Standard Barb End Style, 3/4 in Hex, 2.53 in Length, 8500 to 9000 psi Pressure, -40 to 250 deg F, Brass, 0.88 in OD, Domestic
| Dimensions |
: |
0.88 in OD |
| Hex Size |
: |
3/4 in |
| Length |
: |
2.53 in |
| Pressure Rating |
: |
8500 to 9000 psi |
| Series |
: |
DQC DF Industrial |
| Temperature Rating |
: |
-40 to 250 deg F |
| Fitting/Connector Type |
: |
Coupling |
| Type |
: |
Semi-Auto |
| Nominal Size |
: |
1/4 in |
| End Style |
: |
Coupler x Standard Barb |
| Material |
: |
Brass |
| Domestic/Import |
: |
Domestic |
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
- Nitrile (Buna-N) seals are standard
- Steel componentry is plated using ROHS compliant trivalent chrome
- Steel sleeve and steel tubular valve
- Compatible with Foster 3, 4, 5 and 6 series, parker 20-series manual interchange and Hansen 1000, 400 and 500
- Rated pressure for connected brass coupler & brass plug: 300 psi (20 bar) maximum working and 8,500 psi (586 bar) burst
- Rated pressure for connected brass coupler & brass plug: 500 psi (35 bar) maximum working and 9000 psi (620 bar) burst
- 1/4 in body
