Pramet 6751877
send Send print Print

Pramet 6751877

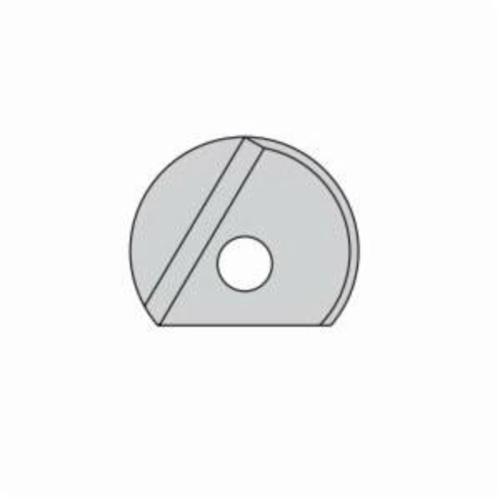

Pramet 6751877 Milling Insert With 2-Teeth, RCA ARAF Insert, 8 Insert, Carbide, Ball Nose Radius Shape, Material Grade: HF7

  • TIEPN: PTD 6751877
  • MPN: 6751877
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

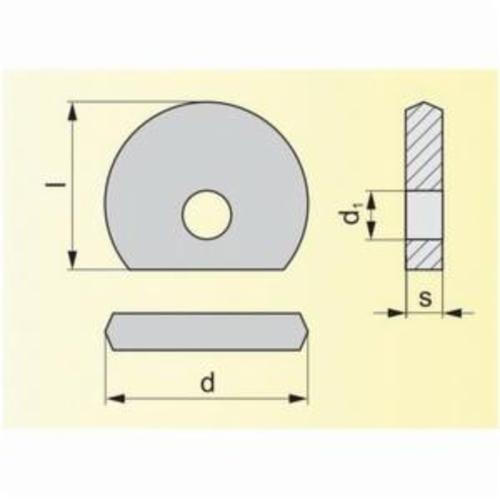

Pramet Milling Insert, RCA ARAF Insert, 8 Insert, Ball Nose Radius, 8 mm Inscribed Circle, 2.4 mm Thickness, 7 mm Length, 2.5 mm Hole Dia, ISO Code: RCA 08, Carbide, PCD Coated, Material Grade: HF7, Hardened Steel, Cast Iron, Stainless Steel, Aluminum and Titanium/Super Alloy Material Application

Finish      :      PCD Coated
Hole Diameter      :      2.5 mm
ISO Code      :      RCA 08
Inscribed Circle      :      8 mm
Length      :      7 mm
Thickness      :      2.4 mm
Insert Style      :      RCA ARAF
Insert Size      :      8
Material      :      Carbide
Material Application      :      Hardened Steel, Cast Iron, Stainless Steel, Aluminum and Titanium/Super Alloy
Shape      :      Ball Nose Radius
Material Grade      :      HF7
  • Submicron material without cubic carbides (type H) and with a low cobalt content
  • Very versatile
  • Small to medium chip cross-sections
  • Suited to stable machining conditions
