Pramet 6751838

Pramet 6751838 Positive Milling Insert, ANSI Code: SEET 43AFFN-FA, SEET Insert, 1204 Insert, Carbide, Squared Shape, Material Grade: HF7

  • TIEPN: PTD 6751838
  • MPN: 6751838
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Pramet Milling Insert, Positive, SEET Insert, 1204 Insert, Squared, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.7 mm Width, 12.7 mm Length, FA Chipbreaker, 20 deg Lead Angle, 5.5 mm Hole Dia, ANSI Code: SEET 43AFFN-FA, ISO Code: SEET 1204AFFN-FA, Ambidextrous Hand, Carbide, PCD Coated, Material Grade: HF7, Steel Material Application

ANSI Code      :      SEET 43AFFN-FA
Chipbreaker      :      FA
Finish      :      PCD Coated
Hand of Insert      :      Ambidextrous
Hole Diameter      :      5.5 mm
ISO Code      :      SEET 1204AFFN-FA
Inscribed Circle      :      12.7 mm

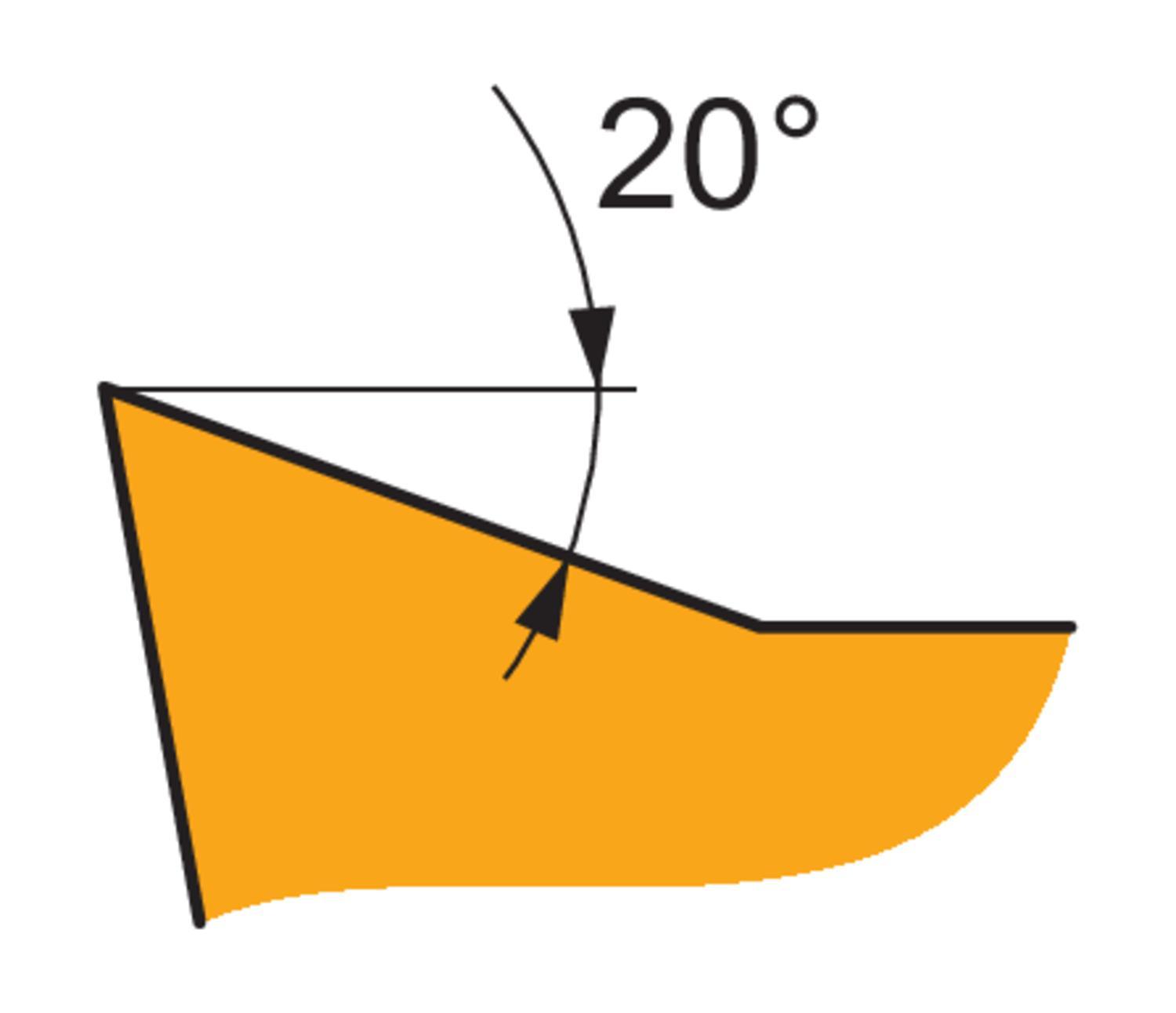

Lead Angle      :      20 deg
Length      :      12.7 mm
Thickness      :      4.76 mm
Type      :      Positive
Width      :      12.7 mm
Insert Style      :      SEET
Insert Size      :      1204
Material      :      Carbide
Material Application      :      Steel
Shape      :      Squared
Material Grade      :      HF7
  • Submicron material without cubic carbides (type H) and with a low cobalt content
  • Very versatile in terms of machined materials
  • Small to medium chip cross-sections
  • Suited to stable machining conditions
