TPI ACU24PO
send Send print Print

TPI ACU24PO

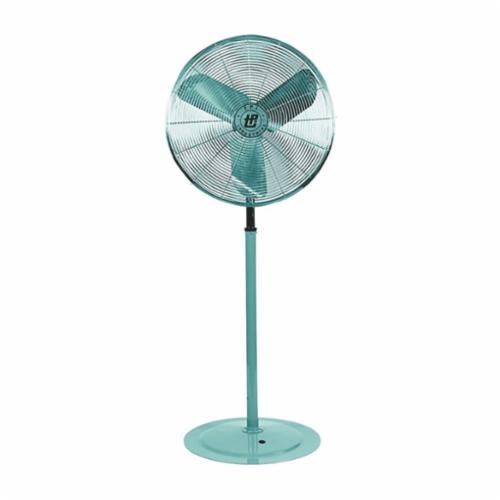

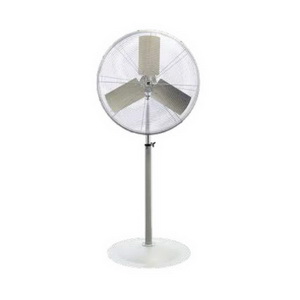

TPI ACU24PO 1-Phase Standard Unassembled Air Circulator, 24 in Blade, 3000 cfm High, 2600 cfm Low Flow Rate, 120 VAC, 2.5 A

  • TIEPN: TPI ACU24-PO
  • MPN: ACU24PO
  • UPC: 686334796408
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

TPI Air Circulator, 1-Phase Standard Unassembled, 24 in Blade, 3000 cfm High, 2600 cfm Low, 1100 rpm High, 800 rpm Low Speed, 1/4 hp Power, 120 VAC, 2.5 A, 2 Speed, Pull Chain Control, Paddle Blade, Aluminum Blade, Split Capacitor Motor, Steel Housing Material, Surface Mounting, SJT 12 ft Cord, 27 in Dia x 14-1/2 in D Dimensions, Domestic

Blade Material      :      Aluminum
Blade Type      :      Paddle
Control Type      :      Pull Chain
Cord Type      :      SJT 12 ft
Dimensions      :      27 in Dia x 14-1/2 in D
Domestic/Import      :      Domestic
Housing Material      :      Steel
Motor Type      :      Split Capacitor
Mounting Type      :      Surface
Number of Speeds      :      2
Power Rating      :      1/4 hp
Speed      :      1100 rpm High, 800 rpm Low
Type      :      1-Phase Standard Unassembled
Blade Size      :      24 in
Flow Rate      :      3000 cfm High, 2600 cfm Low
Voltage Rating      :      120 VAC
Amperage Rating      :      2.5 A
  • Steel hub/spider aluminum paddle blades
  • Coated steel guards
  • Permanent split capacitor
  • Permanently lubricated
  • Motor drive
  • Oscillating fan head type
  • Gray color
  • 52 to 78 in pole adjustment
  • Ball bearing, totally enclosed
