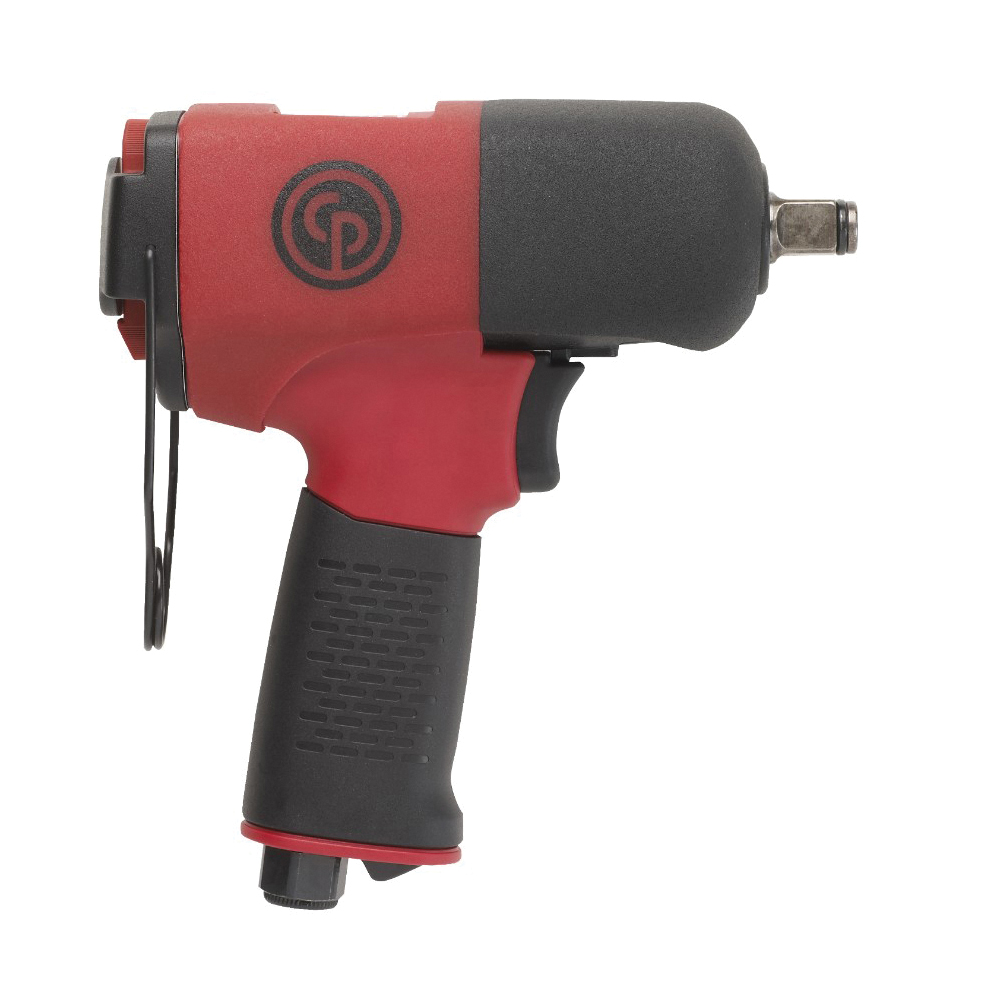

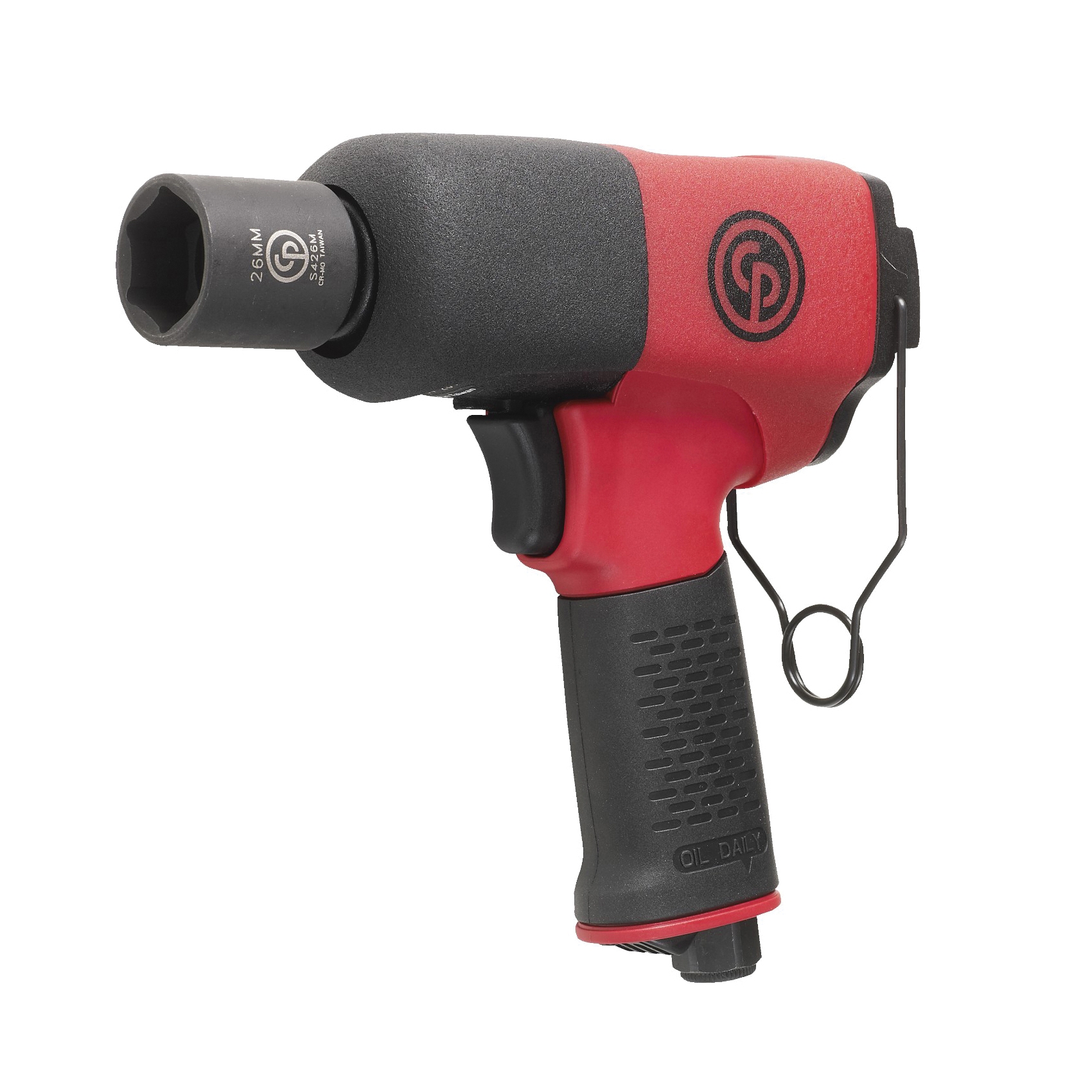

Chicago Pneumatic 6151590240

Chicago Pneumatic 6151590240 Robust Compact Impact Wrench, 1/2 in Drive, 80 to 400 N-m Forward/ 550 N-m Reverse Torque Rating, 21.2 cfm Air Flow, 7 in OAL

  • TIEPN: CPT 6151590240
  • MPN: 6151590240
  • UPC: 015451702519
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

This series of ultralight, ergonomic impact wrenches, designed with a durable twin hammer clutch mechanism is highly recommended. The advantages of pneumatic technology are reinforced by the lightweight composite body design and an aluminium clutch housing for long-term use. Bolt mounting and removal is facilitated by ergonomic options such as an integrated bail and rubber grip handle. The CP82 series is available in 9 models with pin or ring dual socket retainer for a maximum reverse torque from 450 up to 1,650 Nm (332 up to 1217 ft.lb). The range extends from 3/8 Inch to 3/4 Inch.

CP, 6151590240, Impact Wrench, Tool/Kit: Bare Tool, Robust Compact, Square Drive, 1/2 in Drive, 1250 bpm Blows per Minute, 80 to 400 N-m Forward/ 550 N-m Reverse Torque, 11500 rpm Speed, 21.2 cfm Air Flow, 90 psi Air, 1/4 in Air Inlet, Down/Top Exhaust Location, 3/8 in Minimum Hose, Aluminum Housing Material, Pistol Grip Handle, 100 dBA Power/89 dBA Pressure Sound Level, 7 in Overall Length

Air Inlet      :      1/4 in
Air Pressure      :      90 psi
Blows per Minute      :      1250 bpm
Drive Type      :      Square
Exhaust Location      :      Down/Top
Handle Type      :      Pistol Grip
Housing Material      :      Aluminum
Minimum Hose Size      :      3/8 in
Sound Level      :      100 dBA Power/89 dBA Pressure
Speed      :      11500 rpm
Type      :      Robust Compact
Tool/Kit      :      Bare Tool
Drive Size      :      1/2 in
Torque Rating      :      80 to 400 N-m Forward/ 550 N-m Reverse
Air Flow Rate      :      21.2 cfm
Overall Length      :      7 in
  • Very low noise, very limited vibration and lightweight for operator comfort
  • Powerful but easy to control for assembly/disassembly operations
  • Compact for easy access in confined areas
  • Durable and reliable impact for industrial maintenance and production applications
  • 1/2 in compact impact with ring retainer
  • Powerful and durable twin hammer clutch
  • Composite body and aluminum clutch housing
  • 3-power settings in forward and full power in reverse
  • Protective cover and suspension bail
  • Progressive trigger and rubber grip
