Dixon® 2FF3-B

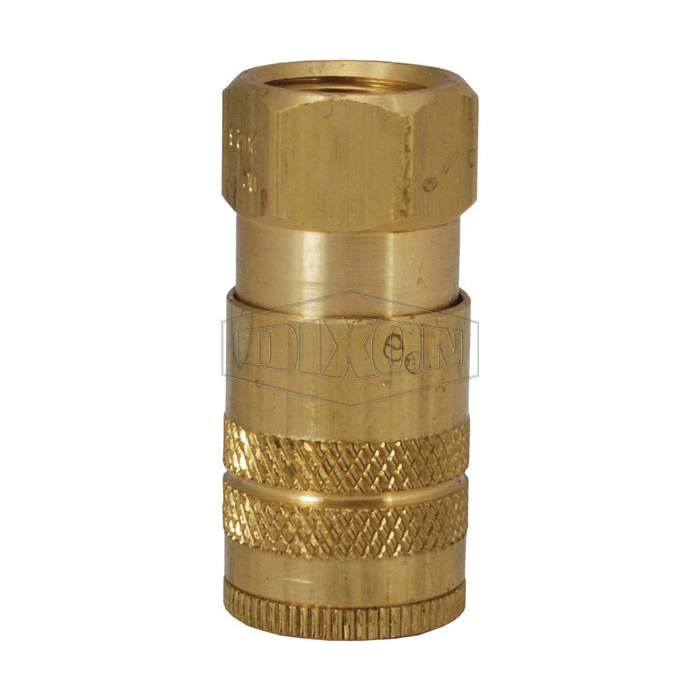

Dixon® 2FF3-B D Interchange Semi-Automatic Pneumatic Coupler, 1/4 x 3/8 in, Quick-Connect x FNPT, Brass

  • TIEPN: DVC 2FF3-B
  • MPN: 2FF3-B
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Dixon® Pneumatic Coupler, Interchange Semi-Automatic, Series: D, Fitting/Connector Type: Coupler, 1/4 x 3/8 in Nominal, Quick-Connect x FNPT, 13/16 in Hex, 500 psi, -40 to 250 deg F, Brass, Polished Chrome, 0.93 in OD x 2.1 in L

Dimensions      :      0.93 in OD x 2.1 in L
Finish      :      Polished Chrome
Hex Size      :      13/16 in
Length      :      2.1 in
Series      :      D Series
Temperature Rating      :      -40 to 250 deg F
Type      :      Interchange Semi-Automatic
Nominal Size      :      1/4 x 3/8 in
End Style      :      Quick-Connect x FNPT
Pressure Rating      :      500 psi
Material      :      Brass
Domestic/Import      :      Domestic
  • Machined components are manufactured using solid bar stock
  • 27 cfm flow rate
  • Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
  • Nitrile (Buna-N) seals are standard
  • Steel tubular valve
