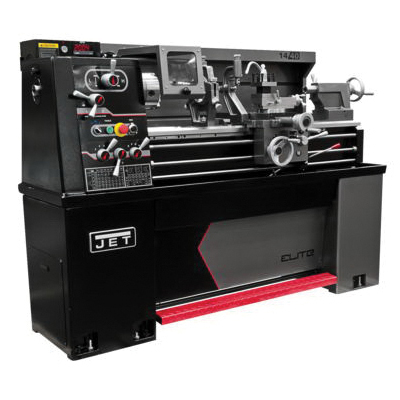

JET® JT9-892462 1440/E-1440VS 3-Phase Electronic Variable Speed Elite Lathe, 14 in Swing Over Bed, 8-5/8 in Swing Over Cross Slide, 40 in Distance Between Centers, 1-1/2 in Spindle, 3 hp

  • TIEPN: JET 892462
  • MPN: JT9-892462
  • UPC: 731325282832
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

EVS lathes compact powerful perfection. These lathes pack large lathe features into compact footprints that make them perfect for schools, small shops and engineering labs. Featuring an electro-magnetic brake, 3-jaw chuck, ball bearing-mounted steady and follow rests and CNC Style Lighting with enclosed splash guard, these lathes are CSA/cUS Certified and truly are Elite.

JET®, JT9-892462, Elite Lathe, 3-Phase Electronic Variable Speed, Series: 1440/E-1440VS, 14 in Swing Over Bed, 8-5/8 in Swing Over Cross Slide, 40 in Distance Between Centers, 8-1/2 in Bed Width, MT3 Tailstock Taper, 1-1/2 in Spindle, D1-4 Spindle Nose, 0 to 2200 rpm Spindle Speed, 7 in Cross Travel, 4-3/4 in Tailstock Spindle Travel, 4 in Compound Travel, 0.0003 to 0.01 in Maximum Cross Feed Rate per Revolution, 0.0012 to 0.0294 in Maximum Longitudinal Feed Rate per Revolution, 3 hp, 230 VAC, 9 A, 77 in L x 30 in W x 58 in H Dimensions

Amperage Rating      :      9 A
Bed Width      :      8-1/2 in
Compound Travel      :      4 in
Cross Travel      :      7 in
Dimensions      :      77 in L x 30 in W x 58 in H
Maximum Cross Feed Rate per Revolution      :      0.0003 to 0.01 in
Maximum Longitudinal Feed Rate per Revolution      :      0.0012 to 0.0294 in
Series      :      1440/E-1440VS
Spindle Nose      :      D1-4
Spindle Speed      :      0 to 2200 rpm
Tailstock Spindle Travel      :      4-3/4 in
Tailstock Taper Size      :      MT3
Type      :      3-Phase Electronic Variable Speed
Voltage Rating      :      230 VAC
Swing Over Bed      :      14 in
Swing Over Cross Slide      :      8-5/8 in
Distance Between Centers      :      40 in
Spindle Size      :      1-1/2 in
Horsepower      :      3 hp
  • Electromagnetic assisted foot brake for rapid braking
  • Inverter drive system provides infinitely variable spindle speeds
  • Steady and follow rest feature double sealed ball bearing guides for smooth material movements

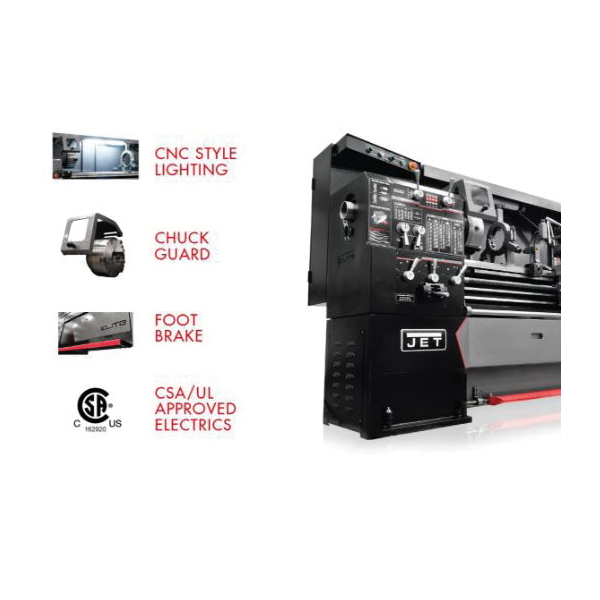

  • Chuck guards are standard equipment on all ELITE lathes for increased safety
  • Front facing chip pan allows easy chip removal from the front of the machine

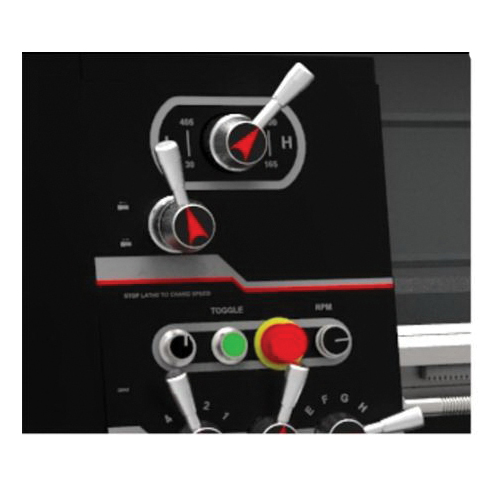

  • Two speed gearbox allows low speeds from 40 to 365 rpm to high speeds from 165 to 2000 rpm
  • Hardened and ground gears in headstock reduce vibration and deflection

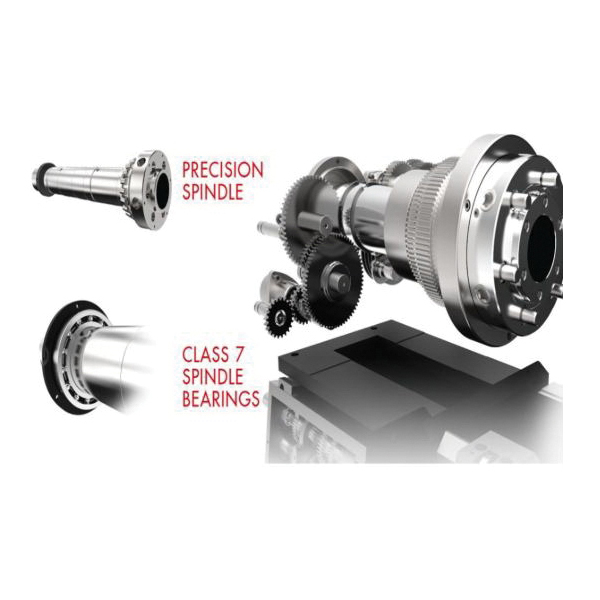

  • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004

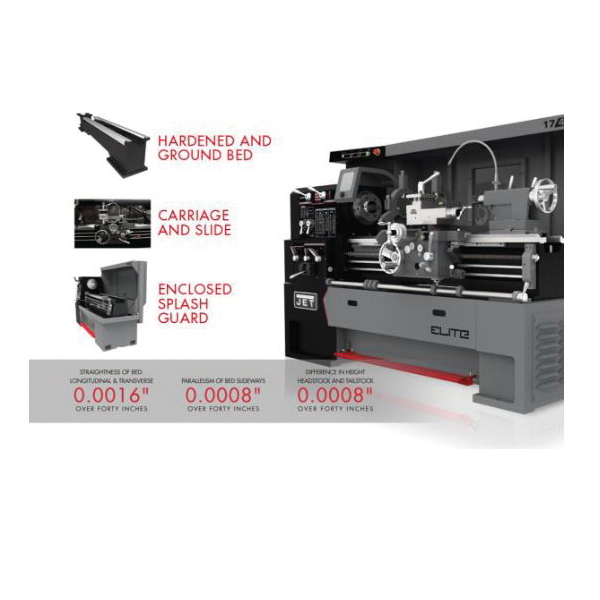

  • Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant
  • Overload clutch at feed shaft prevents the carriage from crashing into the chuck
  • Certified Meehanite® castings retain their tolerances and remain rigid through many years of machining
  • Heavy duty stand with full length foot brake
  • LED rpm readout allows for precise turning speeds
  • For added safety, the E-1440VS Lathe follows strict guidelines and electrical requirements to be certified by CSA Group
  • 19 A at 230 V 3-phase amperage draw
