Bessey® WSM-12

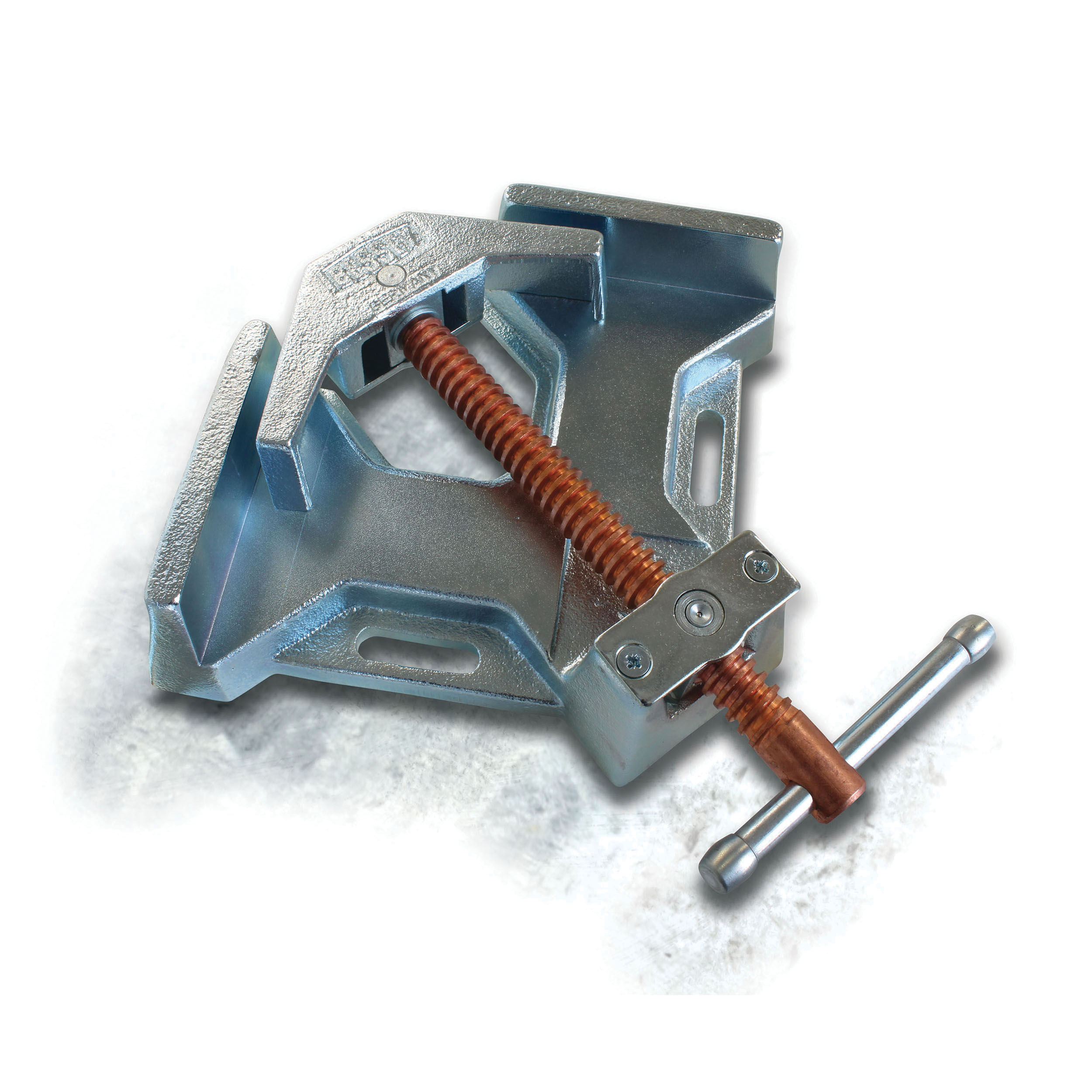

Bessey® WSM-12 Welder's Angle Clamp, 4-3/4 in Miter, 4-1/2 in L x 2-3/8 in H Jaw, Steel, Zinc Plated

  • TIEPN: BTN WSM-12
  • MPN: WSM-12
  • UPC: 788502008419
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

WSM series right-angle welders clamp was developed to meet a wide range of applications, and specialize in aligning materials at 90 deg for welding purposes. The single copper coated spindle resists weld splatter and it's free floating movable jaw automatically adjusts to different work pieces, dimensions and thicknesses. The high quality cast-iron construction keeps this clamp stable and solid for any application. These clamps are tough and versatile, made to simplify the work process.

Bessey® Welder's Angle Clamp, Series: WSM, Miter Capacity: 4-3/4 in, 2-3/8 in Jaw Height, 4-1/2 in Jaw Length, 9-1/2 in Throat Depth, 90 deg Clamping Angle, Steel, Zinc Plated

Clamping Angle      :      90 deg
Series      :      WSM
Throat Depth      :      9-1/2 in
Miter Capacity      :      4-3/4 in
Jaw Length      :      4-1/2 in
Jaw Height      :      2-3/8 in
Material      :      Steel
Finish      :      Zinc Plated
  • Automatic adjustment to work pieces of different thicknesses
  • Service spindle assembly item 3100954 for WSM-12
  • Sturdy jaws and base made from high grade cast iron
  • Copper plated spindles resist spatter
  • Right angle clamping
  • Workpieces of different thicknesses
  • Clear working area
