Alemite® 3038-B

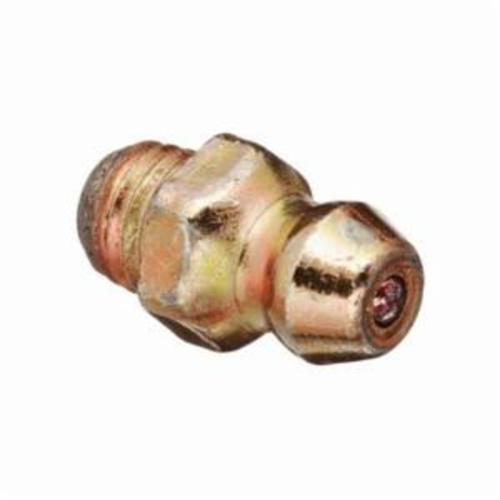

Alemite® 3038-B Straight Thread Forming Grease Fitting, 1/4-28 Special Taper Male Thread, 37/64 in OAL, 0.19 in L Shank, Steel, Trivalent Zinc Plated

  • TIEPN: ALE 3038-B
  • MPN: 3038-B
  • UPC: 098468100875
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Alemite® Grease Fitting, Straight Thread Forming, 1/4-28 Special Taper Male, 37/64 in Overall Length, 0.19 in Shank Length, 5/16 in Hex, Trivalent Zinc Plated, Steel

Hex Size      :      5/16 in
Type      :      Straight Thread Forming
Thread Size      :      1/4-28 Special Taper Male
Overall Length      :      37/64 in
Finish      :      Trivalent Zinc Plated
Material      :      Steel
Shank Length      :      0.19 in
  • Exceeds 72 hr salt spray test
  • Dirt-excluding check ball
  • Thread forming fittings have special tapered drive threads to reshape the material in an untapped hole to provide a leak proof seal
  • Dyed yellow for identification
  • Threads provide strong seal
  • They are most effectively installed by spinning into the untapped hole, but may be driven straight into the untapped hole
  • Thread forming fittings can be replaced by any standard threaded fitting or by another thread forming fitting
