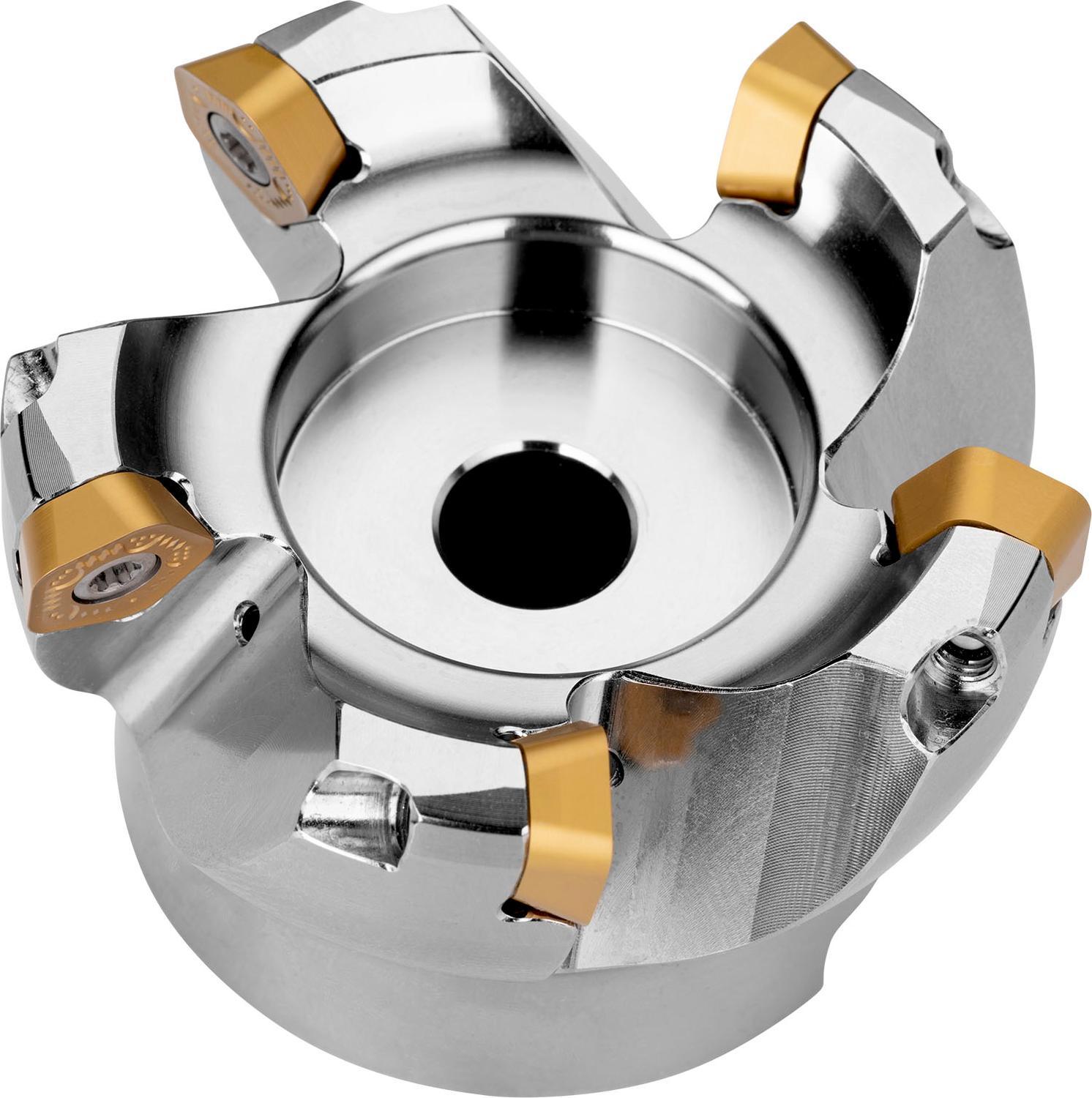

Pramet 6792983 Penta HF High Feed Milling Cutter, 3 in Dia Cutting, Carbide

  • TIEPN: PTD 6792983
  • MPN: 6792983
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

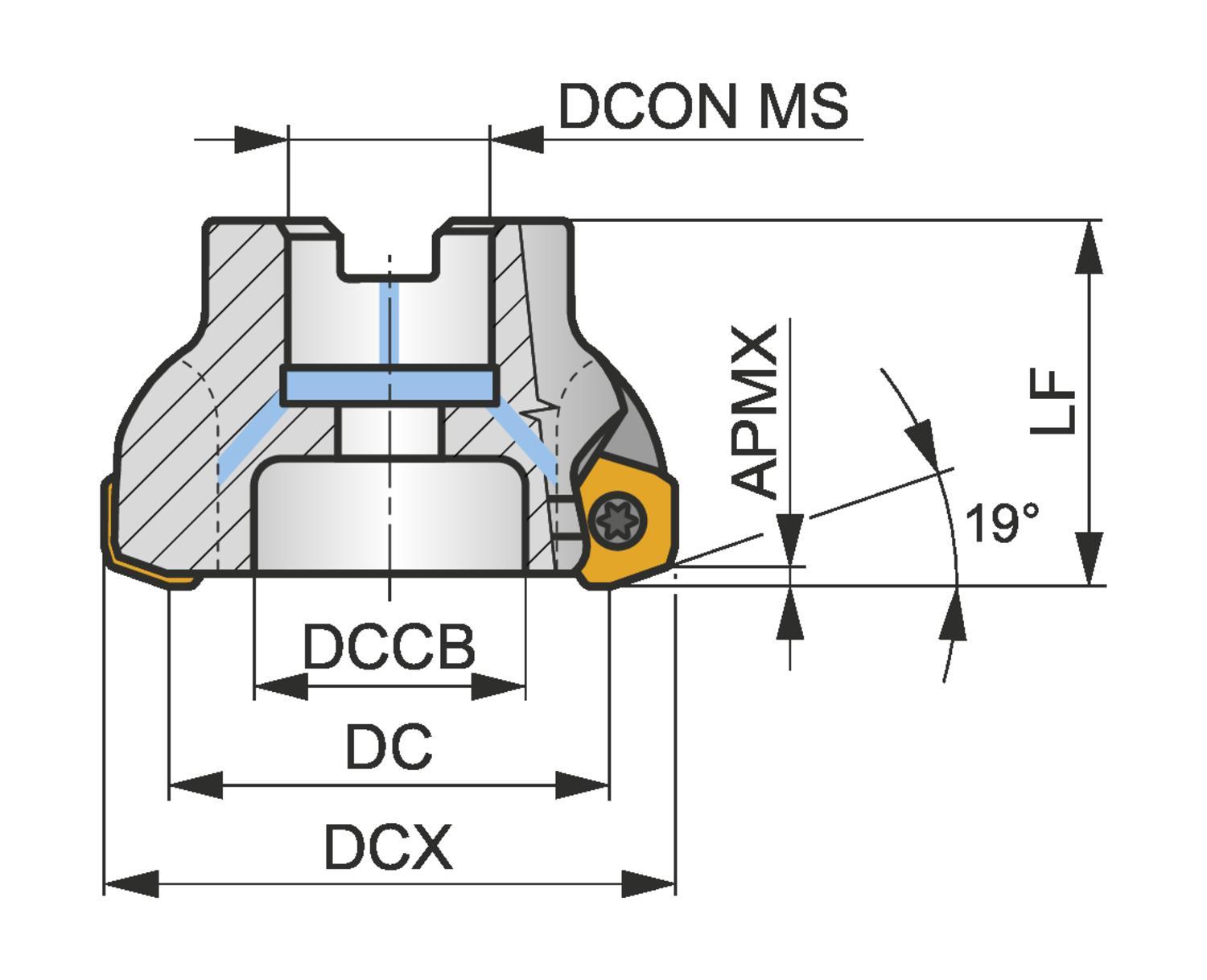

Pramet Milling Cutter, High Feed, Series: Penta HF, 3 in Cutting Dia, 5 Inserts, 1.969 in Head Length, 1 in Shank Dia, ISO Code: 300A05R-IS19PD09-C, Carbide

Head Length      :      1.969 in
ISO Code      :      300A05R-IS19PD09-C
Number of Inserts      :      5
Series      :      Penta HF
Shank Diameter      :      1 in
Type      :      High Feed
Cutting Diameter      :      3 in
Material      :      Carbide
  • Internal coolant on body for deep cavity milling/helical applications
  • 19 deg and positive axial inclination requiring less horsepower
  • Extensive insert/grade program for most materials/applications
  • Economical five cutting edge inserts
  • Special surface finish for increased corrosion-resistance, reduced wear and lower friction-resistance
  • Polished inserts for high feed and differential pitch
