Dormer 5986521

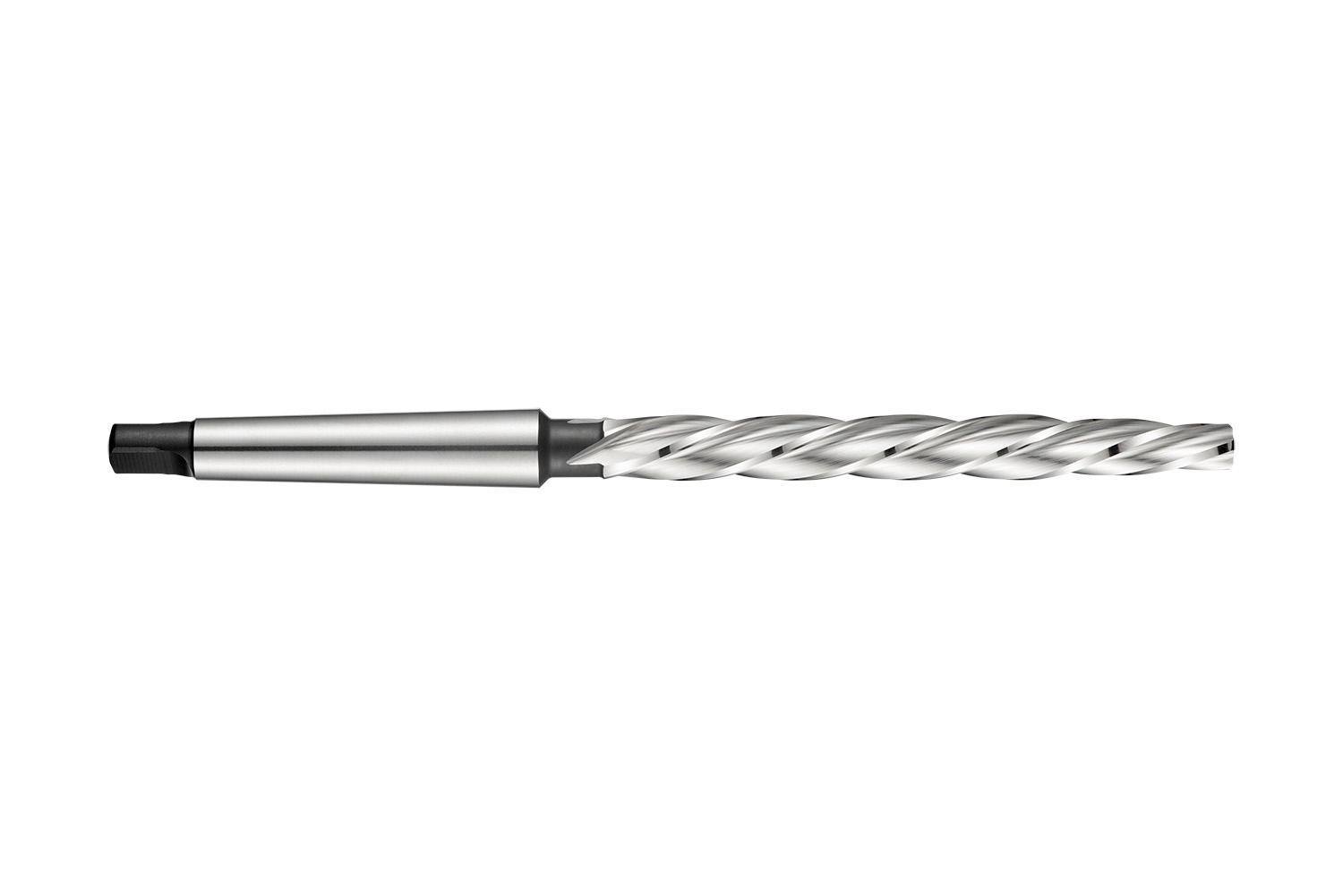

Dormer 5986521 B121 Conical Bridge Reamer, Metric, 24 mm Dia x 296 mm L, #3 Morse Taper Shank

  • TIEPN: PTD 0049167
  • MPN: 5986521
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Dormer Bridge Reamer, Conical, Series: B121, Metric, 24 mm Diameter, 296 mm Overall Length, #3 Morse Taper Shank, 4 Flutes, 180 mm Flute Length, HSS, Bright/Steam Oxide, Right Hand Cutting Direction, Applicable Materials: Cast Iron, Steel, Synthetic Materials and Titanium

Applicable Materials      :      Cast Iron, Steel, Synthetic Materials and Titanium
Cutting Direction      :      Right Hand
Finish      :      Bright/Steam Oxide
Flute Length      :      180 mm
Material      :      HSS
Number of Flutes      :      4
Series      :      B121
Type      :      Conical
Reamer Size Measurement System      :      Metric
Diameter      :      24 mm
Overall Length      :      296 mm
Shank Type      :      #3 Morse Taper
  • The B121 is a rivet reamer with a conicity of 1:10
  • The construction dimensions of this hole reamer are in accordance with DIN311 standards
  • Used in structural iron and steel applications for badly misaligned holes
