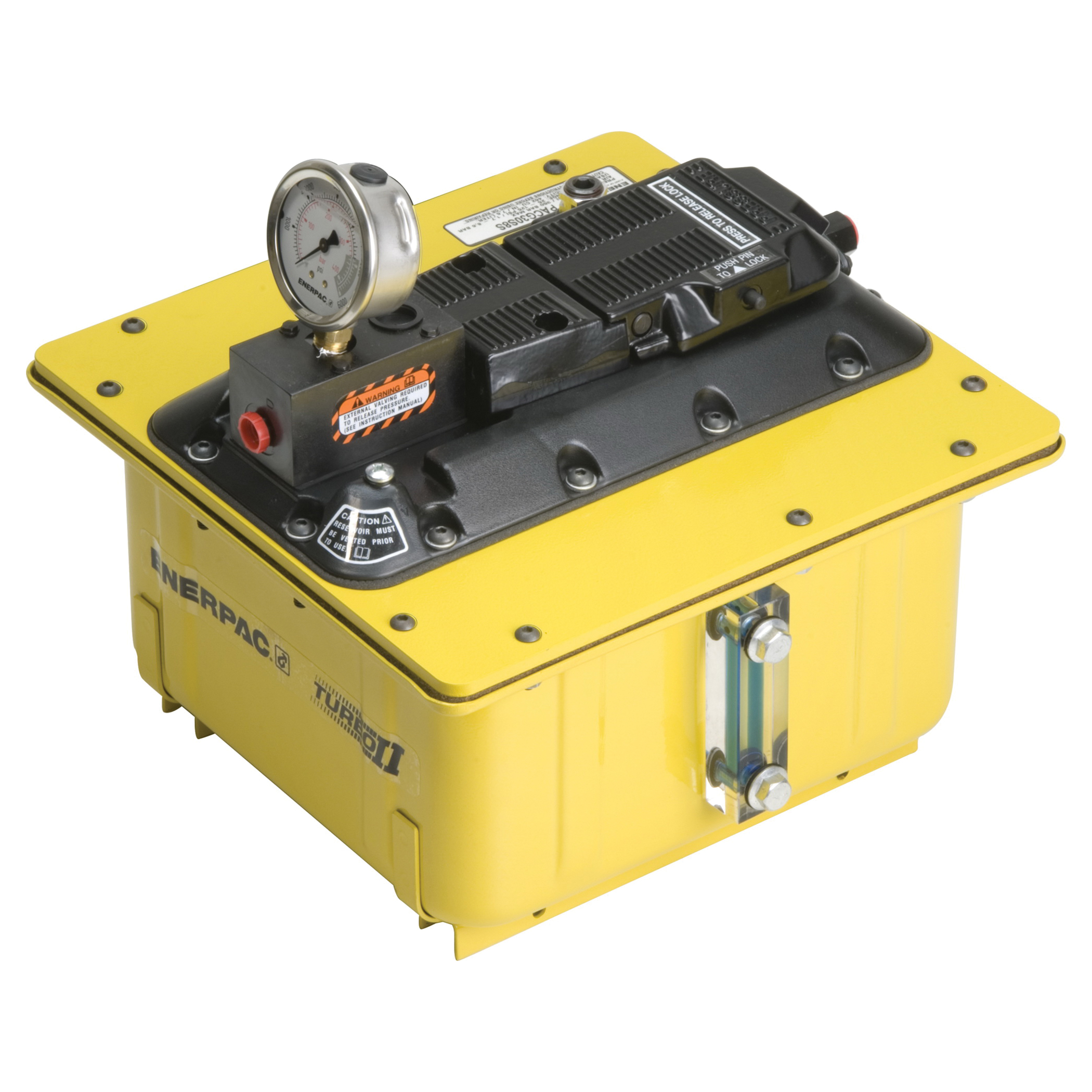

Turbo II air hydraulic pumps generate the hydraulic pressure you need using the air pressure you have available. The air saver piston reduces air consumption and operating costs. They are ideal for providing the power and speed desired in simple clamping circuits. Turbo II air hydraulic pumps are best suited to medium and lower cycle applications. At only 75 dBA, the Turbo II series helps to keep noise level to a minimum.
Enerpac® Hydraulic Pump, Air Powered, Series: Turbo II, Remote Actuator, 5000 psi, 12 scfm, 180 cu-in/min Oil Displacement, 3/8-18 NPTF Fluid Port, 1/4-18 NPTF Air Inlet, 462 cu-in Oil, 462 cu-in Reservoir, 50 to 125 psi Air, 75 dBA, 12.4 in Length, 8 in Width, 9.61 in Height
| Air Pressure | : | 50 to 125 psi |
| Capacity | : | 5000 psi |
| Height | : | 9.61 in |
| Length | : | 12.4 in |
| Oil Capacity | : | 462 cu-in |
| Reservoir Capacity | : | 462 cu-in |
| Series | : | Turbo II PACG |
| Sound Level | : | 75 dBA |
| Type | : | Air Powered |
| Width | : | 8 in |
| Actuator Type | : | Remote |
| Air Flow Rate | : | 12 scfm |
| Oil Displacement Rating | : | 180 cu-in/min |
| Fluid Port Size | : | 3/8-18 NPTF |
| Air Inlet | : | 1/4-18 NPTF |
- On demand stall restart operation maintains system pressure, providing clamping security
- External adjustable pressure relief valve (behind sight glass)
- Internal pressure relief valve provides overload protection
- 45:1 hydraulic to air ratio
- Reinforced heavy duty lightweight reservoir for applications in tough environments
- Five valve mounting options provide flexibility in setup and operation
- Fully serviceable air motor assembly
- User supplied valves
