JET® 354166

JET® 354166, 3/4 hp, 115/230 VAC, 5/8 in Chuck, 15 in Swing, 16-1/2 x 13 in Table

  • TIEPN: JET 354166
  • MPN: 354166
  • UPC: 662755503061
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

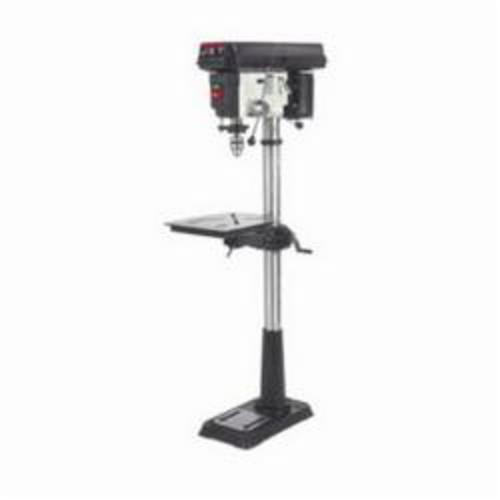

The JDP-15MF 15 in drill press offers sixteen speeds, allowing you to use it for non-drilling chores such as sanding, mortising, shaping, routing, plating and other practical jobs. A hinged metal belt and pulley cover provides easy access to the quick adjustment motor mount, to allow rapid spindle speed changes. The rotating, 45 deg operated worktable has a quick release clamp for fast adjustments, allowing you to be efficient and creative. JET stands behind this machine with a 5 year warranty and best-in-class customer service.

JET® Floor Drill Press, 5/8 in Chuck, 15 in Swing, MT-2/JT-3 Spindle Taper, 3-1/8 in Spindle Travel, 200 to 3630 rpm Spindle Speed, 16 Spindle Speed, 29 in Spindle to Table Distance, 16-1/2 x 13 in Table, 45 deg Right/Left Table Tilt, 11 x 19-3/4 in Base, 2-7/8 in Column Dia, 3/4 hp, 115/230 VAC, 9/4.5 A, 31 in L x 13 in W x 63 in H

Amperage Rating      :      9/4.5 A
Base Dimensions      :      11 x 19-3/4 in
Column Diameter      :      2-7/8 in
Dimensions      :      31 in L x 13 in W x 63 in H
Number of Spindle Speeds      :      16
Spindle Speed      :      200 to 3630 rpm
Spindle Taper      :      MT-2/JT-3
Spindle Travel      :      3-1/8 in
Spindle to Table Distance      :      29 in
Table Tilt      :      45 deg Right/Left
Horsepower      :      3/4 hp
Voltage Rating      :      115/230 VAC
Chuck Size      :      5/8 in
Swing      :      15 in
Table Size      :      16-1/2 x 13 in
  • 16 speeds lets you choose the best speed for the job
  • Quick-release crank operated worktable height adjustment rotates + or - 45 deg for versatility
  • Hinged metal belt and pulley cover provides easy access to the quick adjustment motor mount to allow rapid spindle speed changes
  • X pattern mounting grooves in table allow mounting a fence when table is in reverse position
  • Depth stop displays in/mm and has a quick-set bolt for fast, accurate adjustments
  • Spindle has high quality ball bearing construction for long life
