Dynabrade® 14360

Dynabrade® 14360 Pneumatic Pipe Belt Finisher, 1/2 to 1-1/2 in W x 30 in L, 0.7 hp, 40 scfm Air Flow, 90 psi

  • TIEPN: DYN 14360
  • MPN: 14360
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Dynabrade® Pipe Belt Finisher, Pneumatic, Tool/Kit: Bare Tool, 30 in Belt Length, 1/2 to 1-1/2 in Belt Width, 3400 rpm, 0.7 hp, 40 scfm, 90 psi Air, 1/4 in NPT Air Inlet, Rear Exhaust Location, Lever Throttle, 3/8 in ID Minimum Hose Size, 7 deg Offset, 82 dBA, 18 in L x 10 in H

Air Inlet      :      1/4 in NPT
Dimensions      :      18 in L x 10 in H
Exhaust Location      :      Rear
Handle Type      :      7 deg Offset
Minimum Hose Size      :      3/8 in ID
Series      :      DynaCut A/O
Sound Level      :      82 dBA
Speed      :      3400 rpm
Throttle Style      :      Lever
Type      :      Pneumatic
Tool/Kit      :      Bare Tool
Belt Length      :      30 in
Belt Width      :      1/2 to 1-1/2 in
Horsepower      :      0.7 hp
Air Flow Rate      :      40 scfm
Air Pressure      :      90 psi

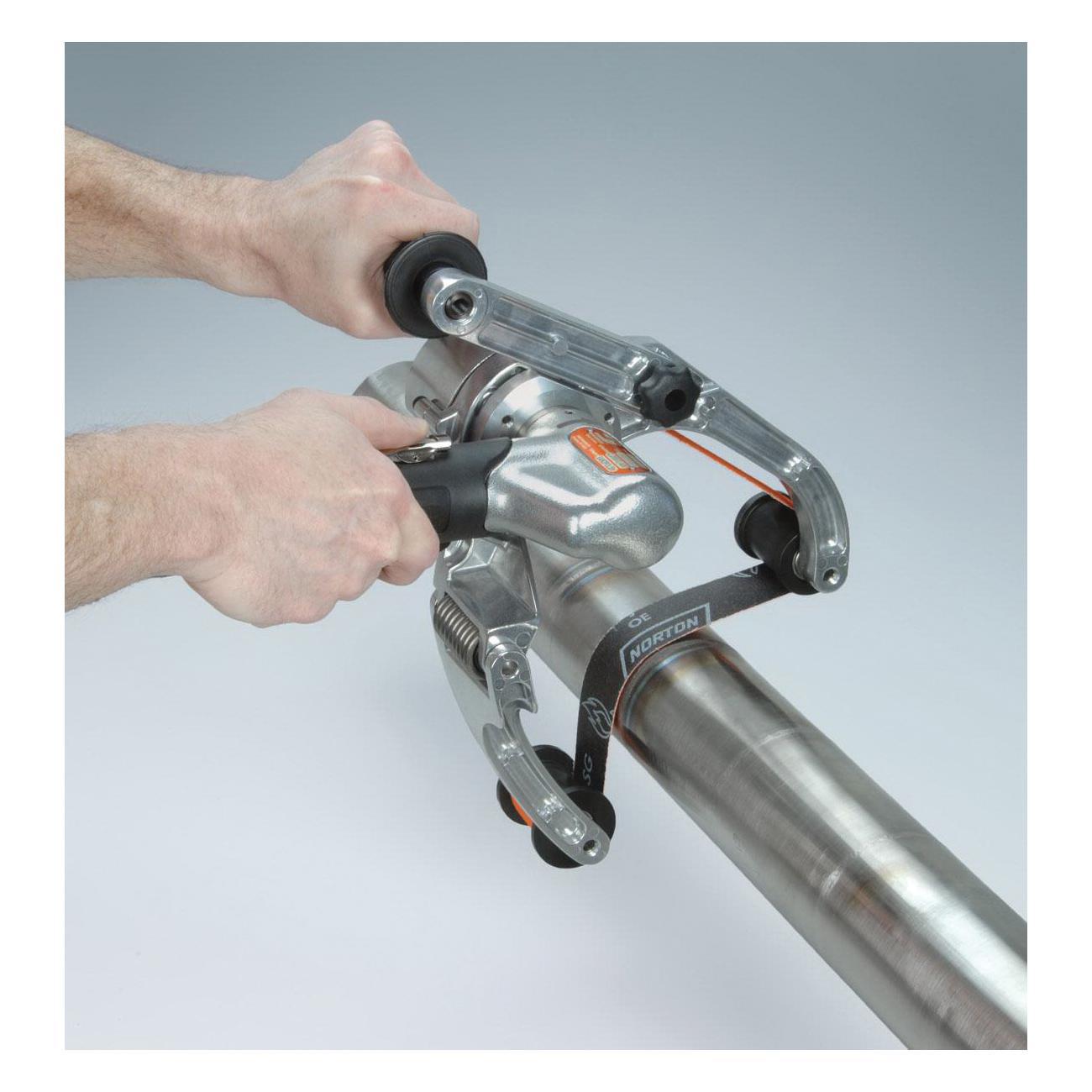

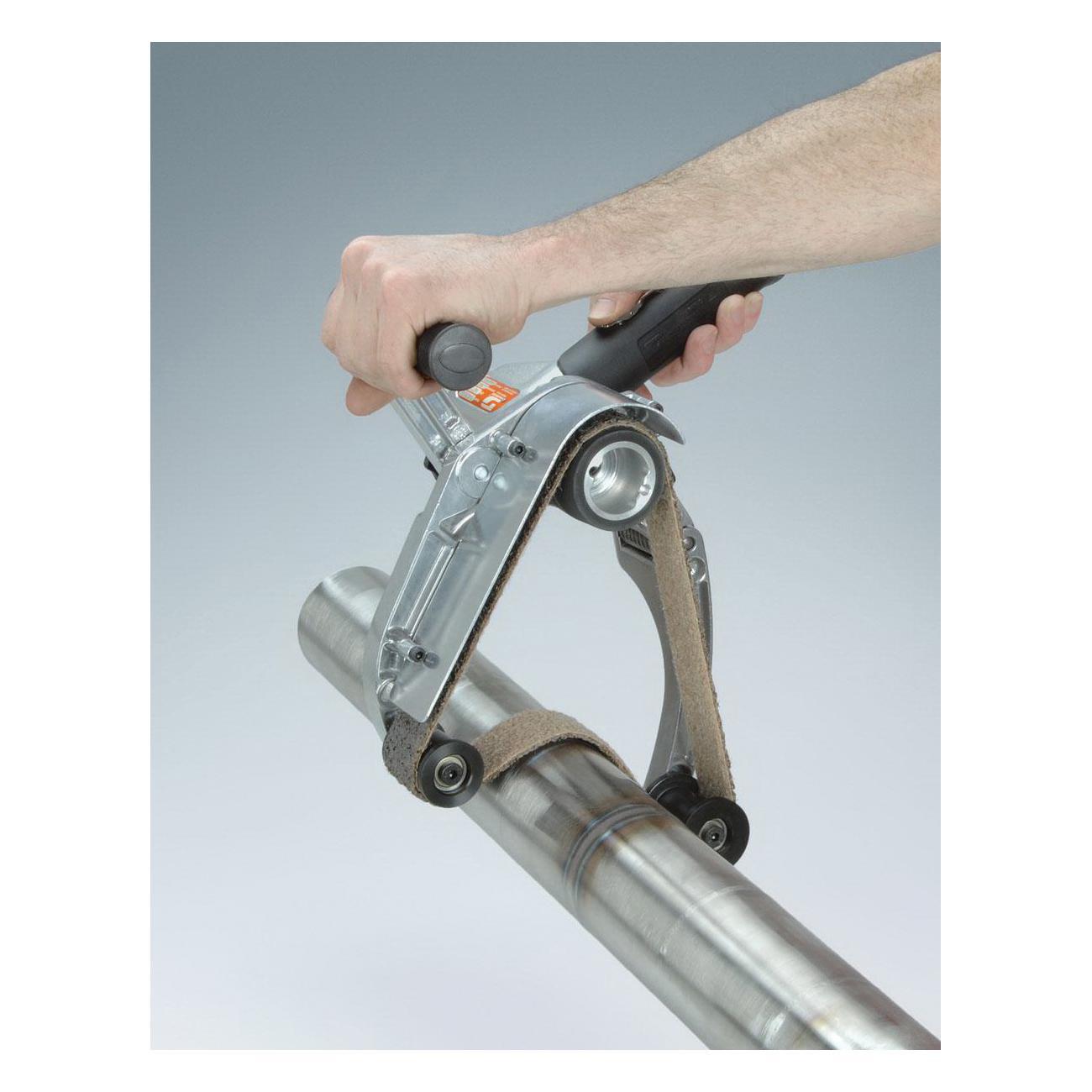

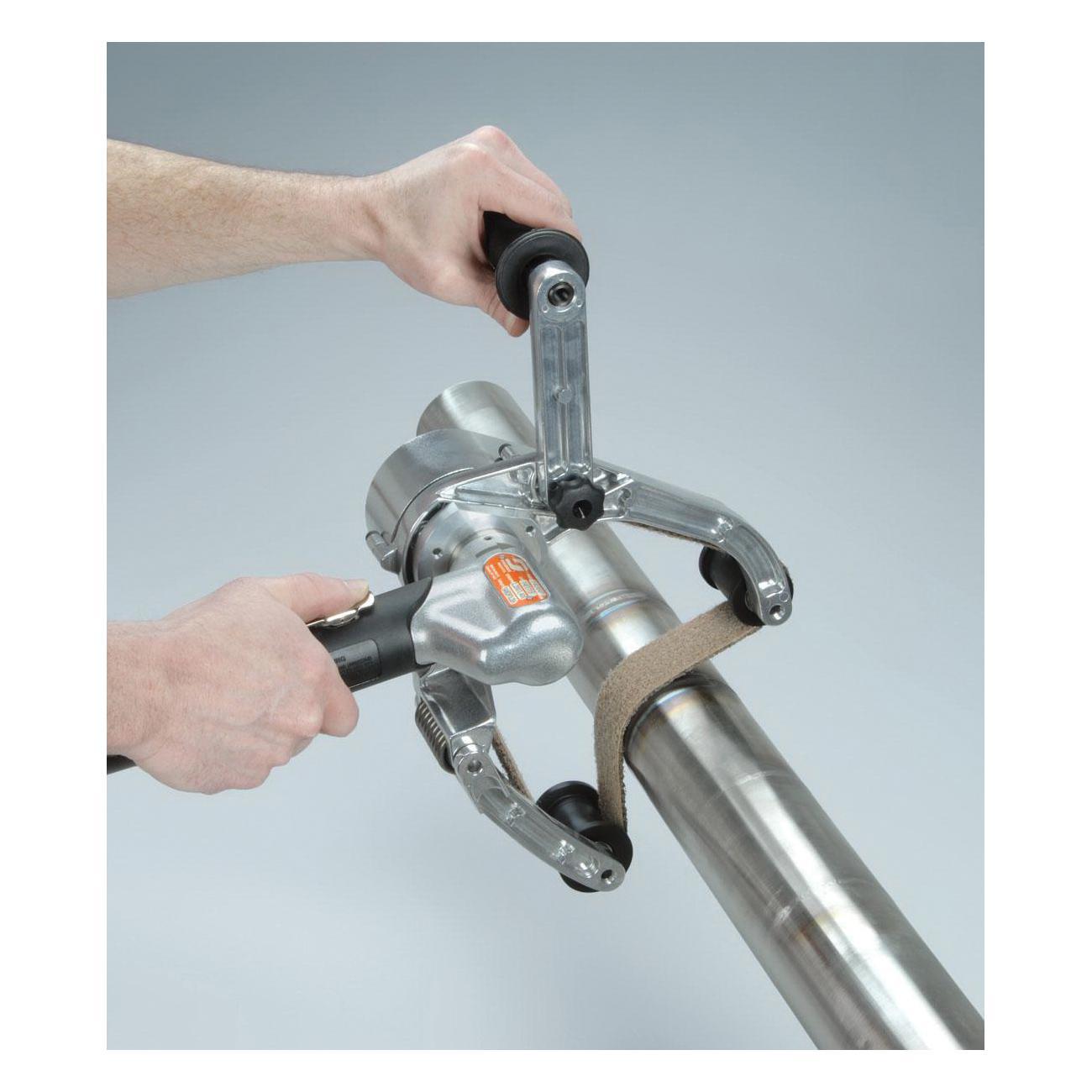

  • Air-powered pipe belt finisher achieves top-quality finishes on rounded surfaces in record time
  • Sand, blend, surface condition, polish and finish on metals such as stainless steel and aluminum
  • An essential tool for metal and railing fabrication, plus pharmaceutical equipment, food industries and more
  • Accepts abrasive belts in widths of 1/2 in to 1-1/2 in, by 30 in length (13 mm to 38 mm x 762 mm)
  • For use on rounded surfaces from 3/8 in to 6 in Dia(10 mm - 152 mm)
  • Safety-lock throttle lever prevents accidental start-up of tool
  • Side-handle adjusts for optimum comfort and control
  • Comfortable grip may be moved for left or right hand use
  • Extended rear exhaust muffler ensures the lowest sound levels
  • Ergonomic tool grip is insulated for extended use
  • Adjustable head-assembly is easily rotated to suit each application
  • Tension-arm allows quick and easy changing of abrasive belts
  • Abrasive belt contacts 180 deg of work-piece circumference, for diameters from 3/8 to 2-3/8 in (10 mm to 60 mm)
  • May also be used on rounded surfaces a large as 6 in (152 mm) in Dia
  • Unique design allows abrasive belt to contact 180 deg of workpiece in diameters from 3/8 in to 2-3/8 in (10 mm - 60 mm)
