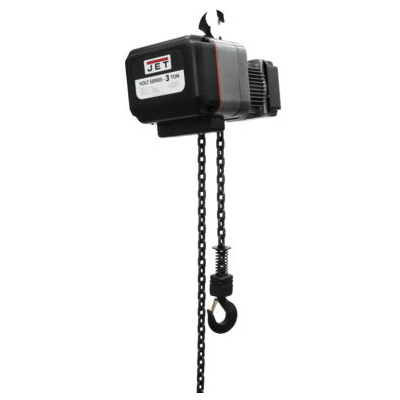

JET® 183235 VOLT Series 3-Phase Variable Speed Electric Hoist, 3 ton Load, 11.2 x 34 mm Chain/Rope, 25 ft H Lifting, 4 hp Power Rating, 230 V

  • TIEPN: JET 183235
  • MPN: 183235
  • UPC: 731325759570
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

The VOLT series is the first electric hoist to feature full range speed control. This technology brings electronic variable speed functionality to the hoist. Lifting speed is now entirely in the hands of the user and can be adjusted on an as needed based according to the application. JET® VOLT series is a full line of variable speed hoists from 1/4 ton to 10 ton capacities, 10, 15, 20, 25 and 30 ft of lift standard and with and 3-phase electrics. Engineered for control and precision, the VOLT series will change the way you get the work done.

JET® Electric Hoist, 3-Phase Variable Speed, Series: VOLT Series, 3 ton Load, 11.2 x 34 mm Chain/Rope, 25 ft Lifting Height, 0 to 24 fpm Lift, 1.77 in Hook Opening, Button Control, Electromagnetic Brake, 4 hp Power, 230 V, 8 A

Amperage Rating      :      8 A
Brake Type      :      Electromagnetic
Control Type      :      Button
Hook Opening      :      1.77 in
Lift Speed      :      0 to 24 fpm
Series      :      VOLT Series
Type      :      3-Phase Variable Speed
Load Capacity      :      3 ton
Chain/Rope Size      :      11.2 x 34 mm
Lifting Height      :      25 ft
Power Rating      :      4 hp
Voltage Rating      :      230 V
  • Control, patented electronic variable speed technology allows for the lift speed to be adjusted to the application
  • Eliminates bump-firing when positioning the work piece reducing downtime and maintenance
  • Precision
  • Minimum speed allows the work piece to be slowly inched down for a soft stop
  • Soft start and stops increase the life of the gear train components, load chain hooks and brake components
  • Safety and durability
  • H4 Duty rating means the VOLT is engineered for demanding, industrial environments and the toughest applications
  • Overload Protection prevents the operator from being able to lift more than the rated capacity of the hoist
  • Electromagnetic brake design is an industry proven safety feature that secures the load even if power is interrupted to the hoist
  • Thermal overload protection protects the motor from overheating in low voltage situations
  • Standards, industry proven grade 80 black oxide coated load chain
  • Load tested to 125% of capacity with certificate
  • Patent pending
  • JET® VOLT electric hoists are NOT rated or designed for outdoor use or wet environments
