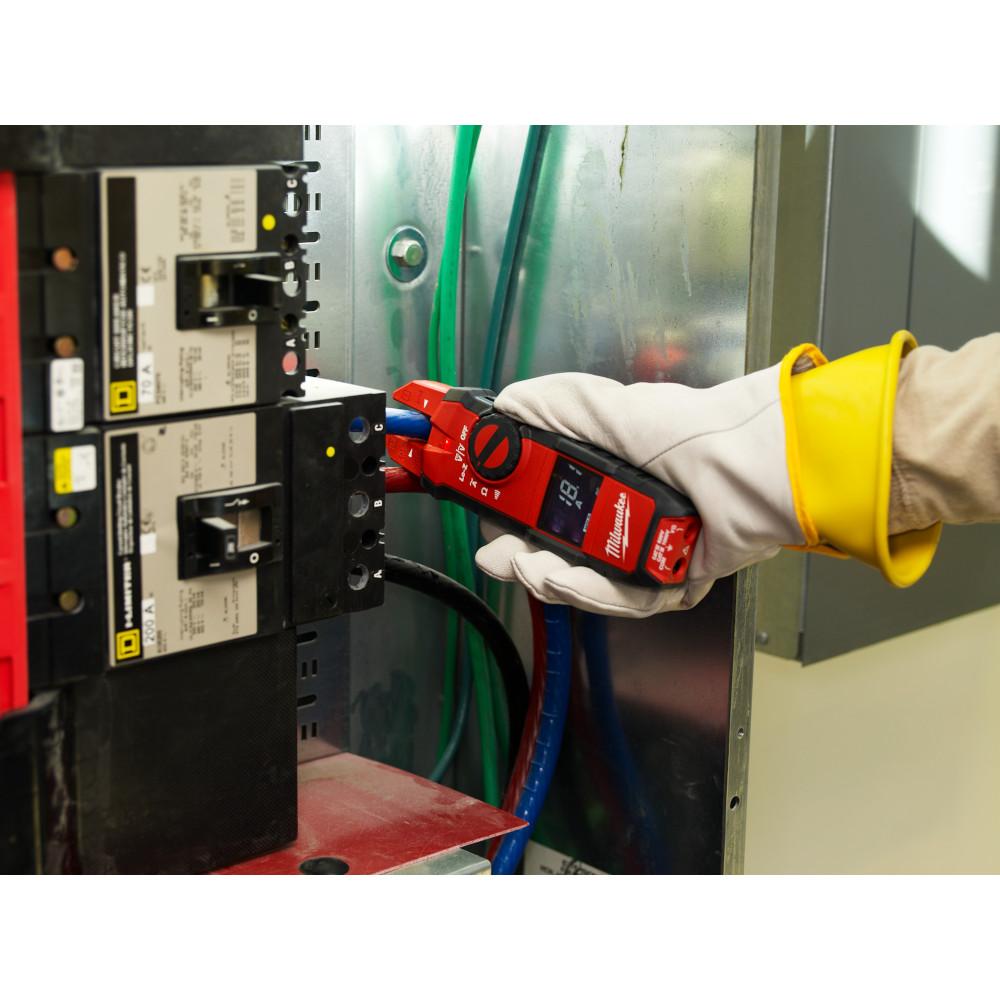

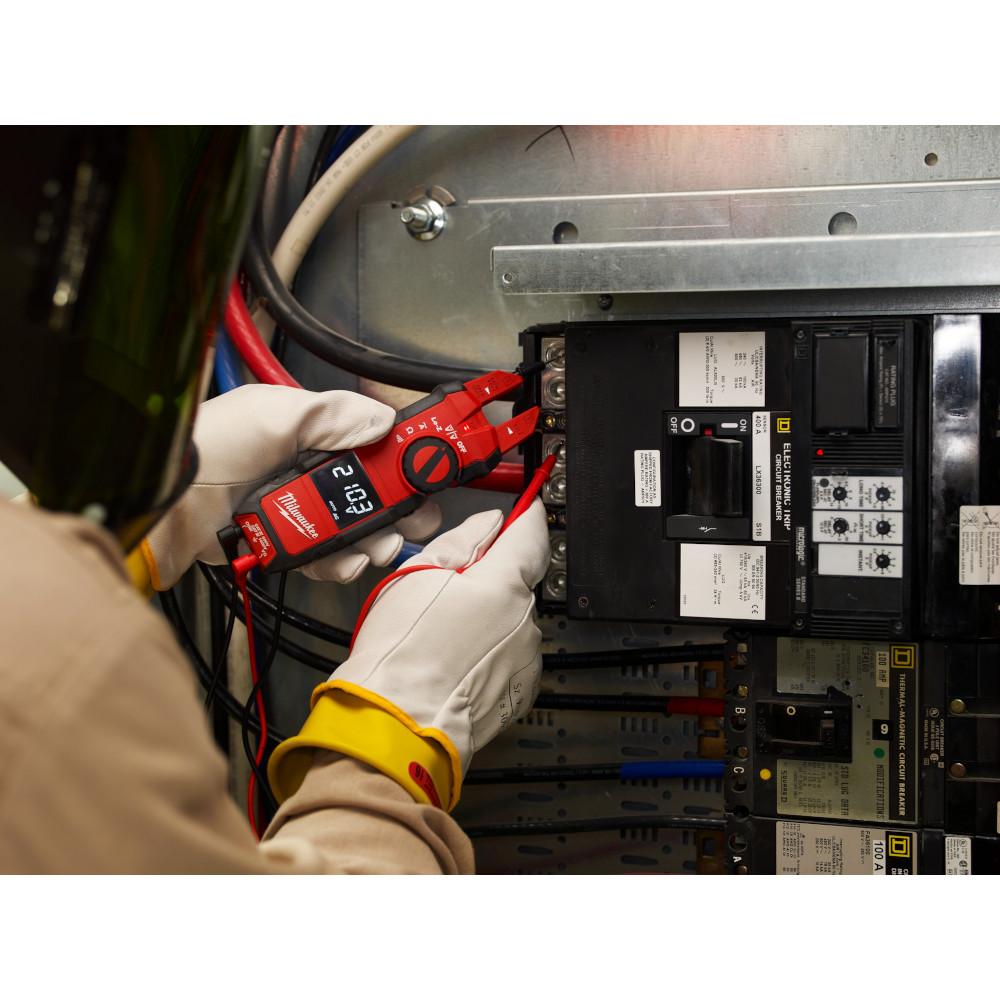

The Milwaukee fork meter is a heavy duty True-RMS electrical tester for professional residential, commercial and industrial applications. The 2205-20 is four tools in one providing current measurement, voltage measurement, voltage detection and task lighting. Additionally, the new tool provides a wide 0.63 in. fork opening, high 200 amp current range and a high contrast white-on-black display.
Milwaukee® Fork Meter, Heavy Duty Digital, 200 A, 1000 VAC/VDC Electrical Rating, 40 mOhm Resistance, 50/60 Hz Frequency, 5/8 in Jaw, 4000 Count, High Contrast White on Black LCD Display, True RMS AC Response, +/-2% +/-5 Digits AC Current Accuracy, Safety Rating: CAT IV 600 V, CAT III 1000 V, AA Alkaline Battery Power Source, 14 to 122 deg F Operating, 8 in L Dimensions, Black/Red
| AC Current Accuracy | : | +/-2% +/-5 Digits |
| AC Response | : | True RMS |
| Color | : | Black/Red |
| Counts | : | 4000 |
| Dimensions | : | 8 in L |
| Operating Temperature | : | 14 to 122 deg F |
| Power Source | : | AA Alkaline Battery |
| Safety Rating | : | CAT IV 600 V, CAT III 1000 V |
| Type | : | Heavy Duty Digital |
| Electrical Ratings | : | 200 A, 1000 VAC/VDC |
| Resistance | : | 40 mOhm |
| Frequency Rating | : | 50/60 Hz |
| Jaw Capacity | : | 5/8 in |
| Display Type | : | High Contrast White on Black LCD |
- Measures up to 200 A, wide 0.63 in jaw opening
- Wide voltage range to 1000 VAC/DC
- True-RMS for accurate measurement in all applications
- Low-Z measurement to eliminate ghost voltage
- Built-in voltage detector and LED work light
- High contrast white on black display with backlight for easy reading
- Rugged over-molding increases durability and user grip
- Cat IV 600 V/cat III 1000 V for greater safety
