Louisville® DXL3020-16PT

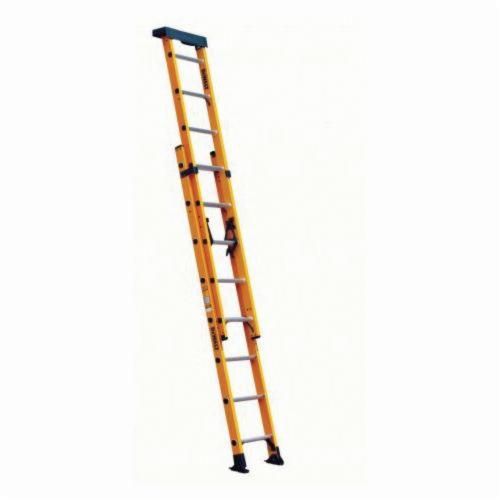

Louisville® DXL3020-16PT Extra Heavy Duty Multi-Section Professional Extension Ladder, 16 ft OAL, 300 lb Load, 12 in Adjustable Increments, Fiberglass, Type IA

  • TIEPN: LLI DXL3020-16PT
  • MPN: DXL3020-16PT
  • UPC: 728865116857
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Louisville® Extension Ladder, Extra Heavy Duty Multi-Section Professional, Series: DXL3020, 16 ft Overall Length, ANSI Code: Type IA, 300 lb, Fiberglass, 15 ft 8 in Maximum Working Length, 8 ft Section Length, 12 in Adjustable Increments, 17 in Outside Shoe Base Width, Non-Conductive Rail, Aluminum/Rubber Shoe

Maximum Working Length      :      15 ft 8 in
Outside Shoe Base Width      :      17 in
Rail Type      :      Non-Conductive
Section Length      :      8 ft
Series      :      DXL3020
Shoe Type      :      Aluminum/Rubber
Type      :      Extra Heavy Duty Multi-Section Professional
Overall Length      :      16 ft
ANSI Code      :      Type IA
Load Capacity      :      300 lb
Material      :      Fiberglass
Adjustable Increments      :      12 in
  • Non-marring durable top with tool slots
  • Top provides stability on corners or irregular surfaces
  • Top has slip-resistant rubber tread
  • QuickLatch™ to lock rungs in place
  • Rung caps to eliminate noise
  • 16 steps
  • D-shape rungs
  • Corner grip, pole grip, integrated bumper, and work tray, all compact and accessible in a spacious design
  • 1-1/2 in step depth
  • 16 ft extension height
  • 13 ft extended length
  • 3 in rail depth
  • 5-3/4 in stack height
  • 7 in approximate spread
  • 7-3/4 in closed cubic feet
  • 103-1/2 in H x 18-1/2 in W x 7 in D closed dimension
  • 9 ft 2 in max standing height
