Enerpac® SG4TMSTD
send Send print Print

Enerpac® SG4TMSTD

Enerpac® SG4TMSTD Secure Grip Flange Spreader Set

  • TIEPN: ENP SG4TMSTD
  • MPN: SG4TMSTD
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Enerpac® Flange Spreader Set, Secure Grip, 4.2 ton Pull Force, 2.95 in Spread, 15.7 in Overall Length, 7-1/2 in Overall Height

Overall Height      :      7-1/2 in
Overall Length      :      15.7 in
Pull Force      :      4.2 ton
Series      :      SG Series
Spread      :      2.95 in
Type      :      Secure Grip
  • The SG4TM secure grip bolt hole spreader can be used on all flange types with bolt hole sizes ranging from 17.5 to 23.5 mm

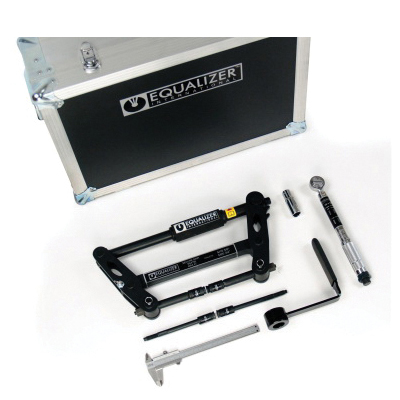

  • Additional short collet holders are supplied within the tool kit allowing the tool to spread flanges apart and remove a spacer, wafer or butterfly valve
  • This low end, mechanical model offers up to 4.2 imperial tons of spreading force
  • Spreading force of 8.4 imperial tons (74 kN) if used in pairs as recommended
  • Short collet holder sets (SCH) are available which can offer improved range of application
  • Collet holders can also be dismantled and inserted through bolt holes from opposite side
