Louisville® AE3220

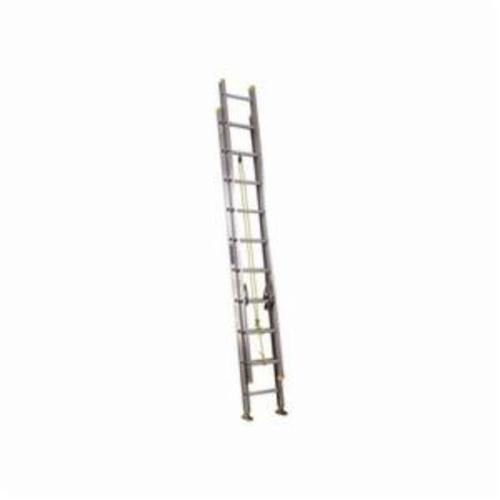

Louisville® AE3220 AE3200 Multi-Section Extension Ladder, 20 ft OAL, 250 lb Load, 12 in Adjustable Increments, Aluminum, Type I

  • TIEPN: LLI AE3220
  • MPN: AE3220
  • UPC: 728865015884
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Louisville® Extension Ladder, Multi-Section, Series: AE3200, 20 ft Overall Length, ANSI Code: Type I, 250 lb, Aluminum, 17 ft Maximum Working Length, 10 ft Section Length, 12 in Adjustable Increments, 17-1/2 in Outside Shoe Base Width, Modified I-Beam Rail, Swivel Safety Shoe

Maximum Working Length      :      17 ft
Outside Shoe Base Width      :      17-1/2 in
Rail Type      :      Modified I-Beam
Section Length      :      10 ft
Series      :      AE3200
Shoe Type      :      Swivel Safety
Type      :      Multi-Section
Overall Length      :      20 ft
ANSI Code      :      Type I
Load Capacity      :      250 lb
Material      :      Aluminum
Adjustable Increments      :      12 in
  • D-rung
  • Modified I-Beam, side rails are full 3 in extrusions shaped into a modified I-Beam for strength and light weight, interlocking rails
  • Swivel safety shoe, heavy duty plated steel shoes with thick rubber tread, shoe can be used with tread down or in spike position
  • It has mar-resistant rail end caps to protect landing surfaces and provide longer life
  • QuickLatch equipped rung lock provides easier method of securing fly base sections when extended, one finger operation
  • 1-1/2 in D step
  • 3 in D rail
  • 5-1/4 in H stack
  • 13 ft 1 in H maximum standing
  • 19 ft 7 in maximum reach
  • 6-1/2 in approximate spread
  • 19 in W bottom
  • 8-6/7 in cu-ft closed
  • 124 in H x 19 in W x 6-1/2 in D closed
