Pramet 6751641

Pramet 6751641 Negative Milling Insert, ANSI Code: SNKX 43ENFN, SNKX Insert, 1204 Insert, Carbide, Squared Shape, Material Grade: H10

  • TIEPN: PTD 6751641
  • MPN: 6751641
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Double-sided milling insert SNKX 1204, square for a maximum depth of cut of 9 mm, with an indexing accuracy according to ISO-tolerance class-K with sharp cutting edges, H10 uncoated WC-Co carbide within ISO-grade range K15-K30 for machining of cast-iron.

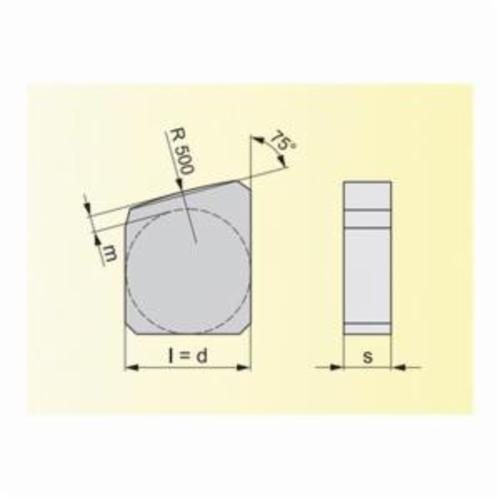

Pramet Milling Insert, Negative, SNKX Insert, 1204 Insert, Squared, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.7 mm Width, 12.7 mm Length, ANSI Code: SNKX 43ENFN, ISO Code: SNKX 1204ENFN, Neutral Hand, Carbide, Uncoated, Material Grade: H10, Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloy Material Application

ANSI Code      :      SNKX 43ENFN
Finish      :      Uncoated
Hand of Insert      :      Neutral
ISO Code      :      SNKX 1204ENFN
Inscribed Circle      :      12.7 mm
Length      :      12.7 mm
Thickness      :      4.76 mm
Type      :      Negative
Width      :      12.7 mm
Insert Style      :      SNKX
Insert Size      :      1204
Material      :      Carbide
Material Application      :      Hardened Steel, Cast Iron, Stainless Steel, Aluminum, Steel and Titanium/Super Alloy
Shape      :      Squared
Material Grade      :      H10
