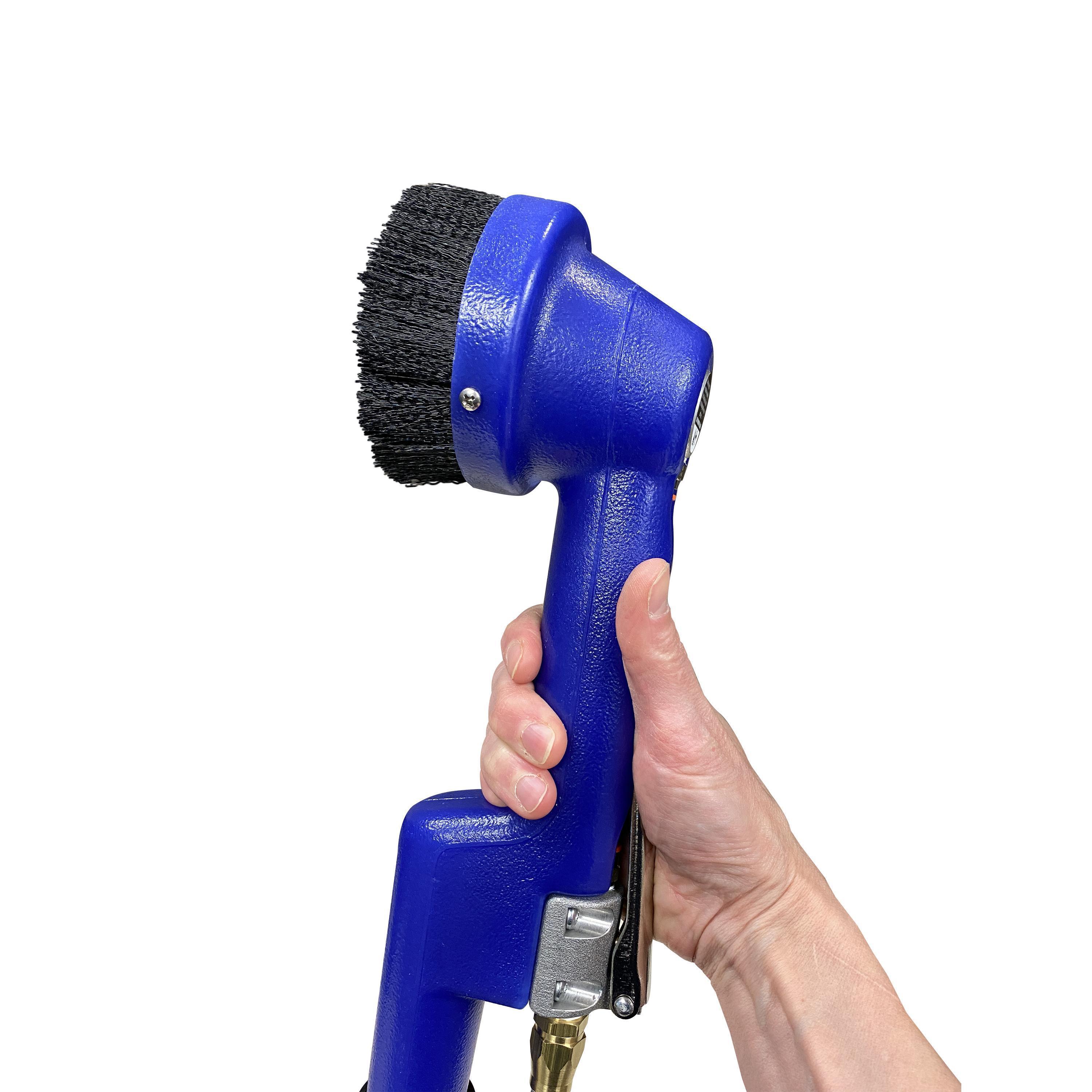

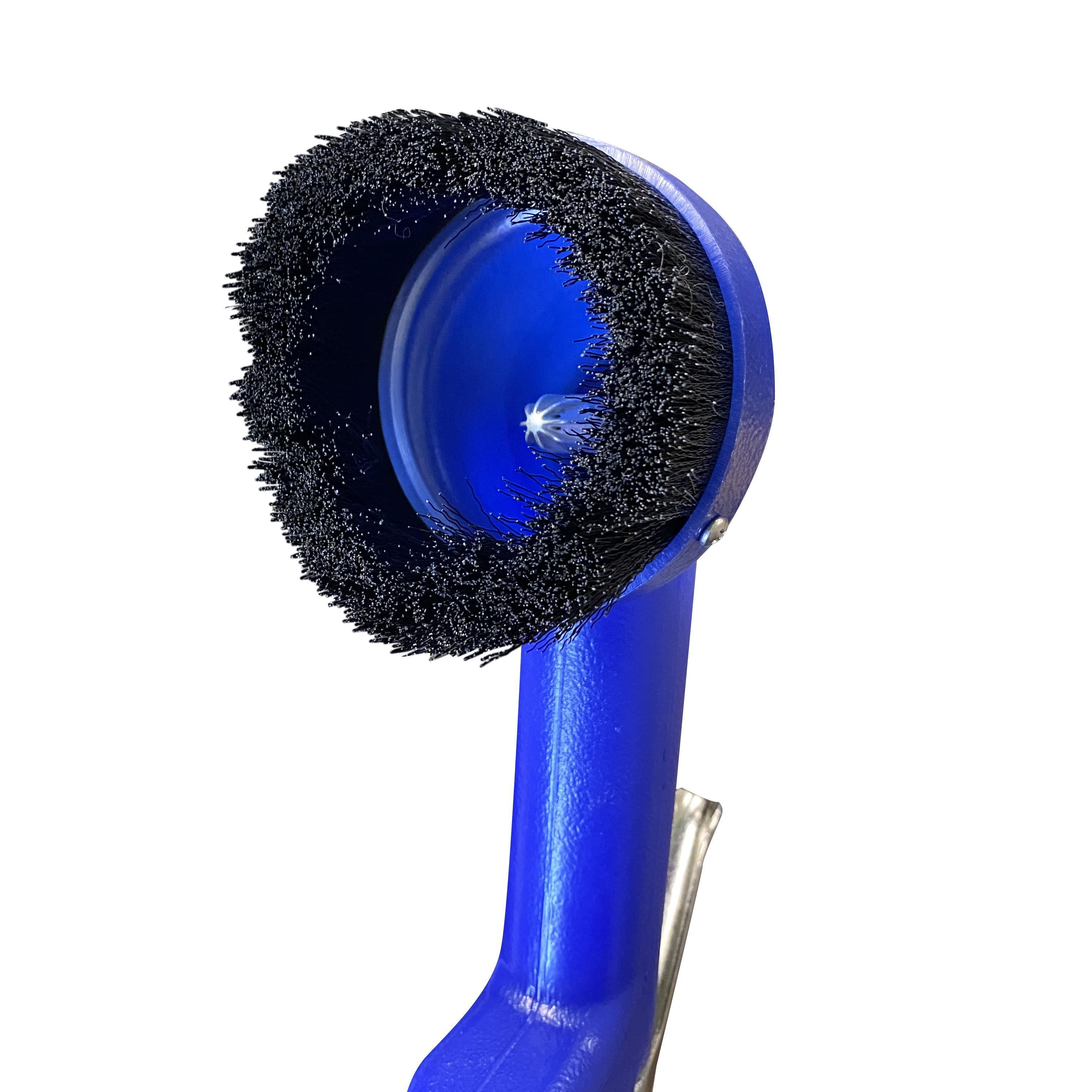

Running off standard shop compressed air, the CS3000 Personnel Cleaning Station pairs a proprietary, on-demand air-agitator brush attachment with a high efficiency pneumatic vacuum. Thumb-switch activated, the air-agitator loosens and lifts particles airborne where the vacuum sucks them away safely and effectively. With no motor to burn out, the CS3000 is virtually maintenance-free. Vertical Mounting System (VMS) mounts on any vertical surface, saving valuable factory floor space.
Guardair® Personnel Cleaning Station, 5.5 gal Tank, Container Tank, 100 psi Static Pressure, 73 cfm, 21/34 cfm, 7.5 hp Minimum Air Compressor, 3/8 in Inlet, 1-1/2 in ID x 5 ft L Hose, Cartridge Filter, Air-Agitator Brush, 88 dBA
| Air Flow Rate | : | 21/34 cfm |
| Brush Type | : | Air-Agitator |
| Filter Type | : | Cartridge |
| Hose Size | : | 1-1/2 in ID x 5 ft L |
| Inlet Size | : | 3/8 in |
| Sound Level | : | 88 dBA dBA |
| Tank Capacity | : | 5.5 gal gal |
| Tank Type | : | Container |
| Flow Rate | : | 73 cfm cfm |
| Static Pressure | : | 100 psi psi |
| Minimum Air Compressor | : | 7.5 hp hp |

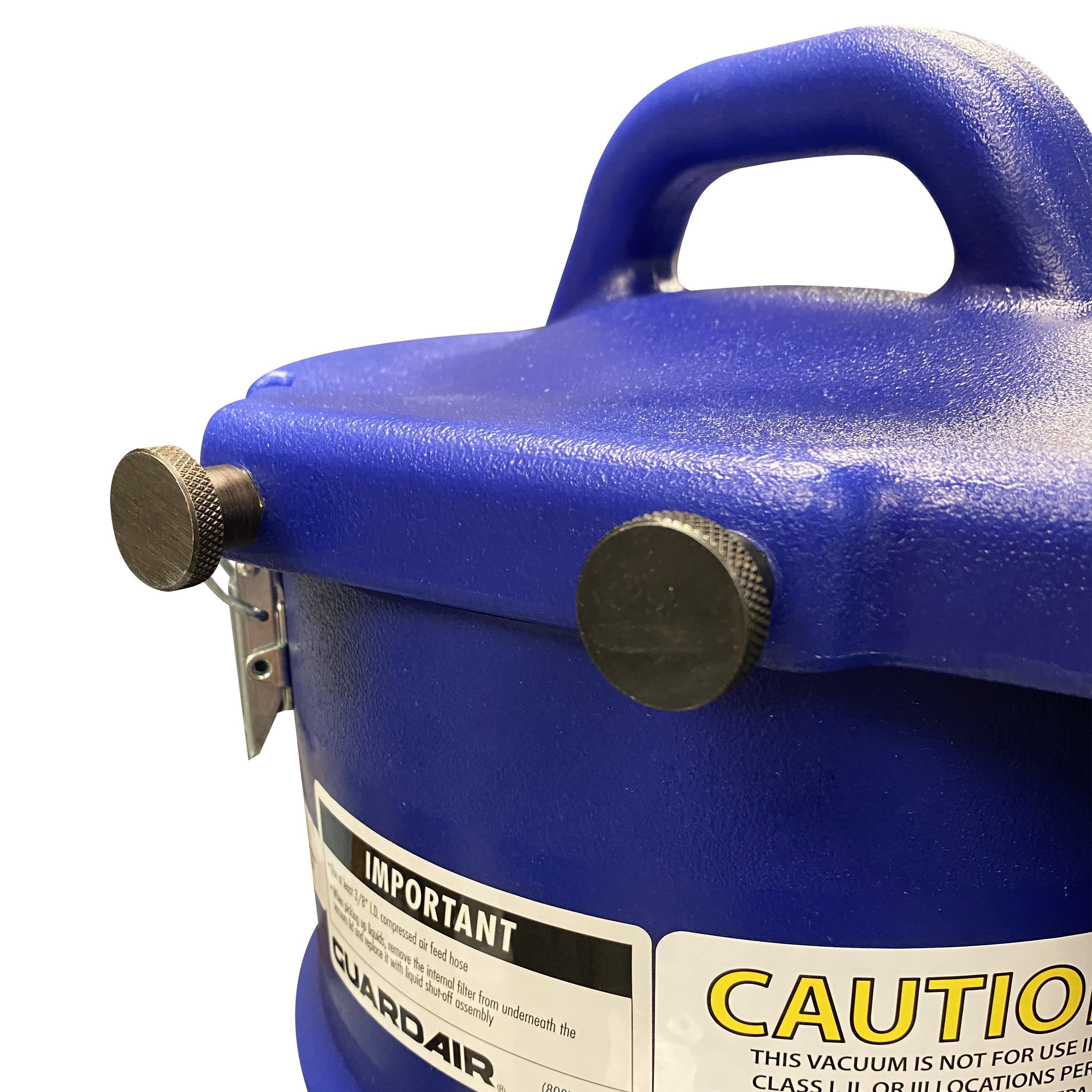

- 5.5 gal chemical resistant polyethylene container

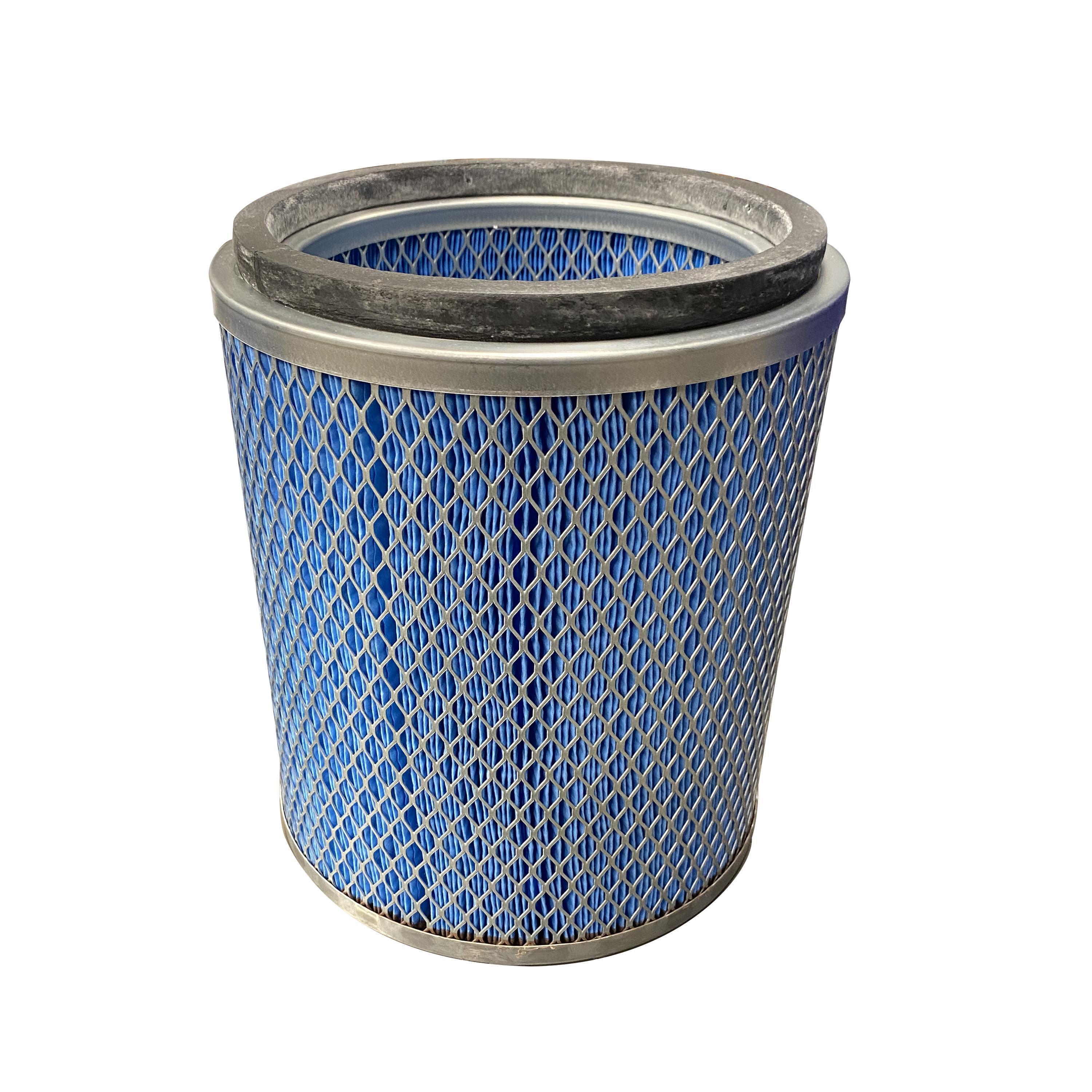

- Cartridge filter (77% efficient at 0.8 Microns)
- Liquid shut-off and drum drain
- Pre-drilled, steel vertical mounting plate
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Guardair_CS3000_Installation_Manual.pdfBranch Availability
