JET® 321102

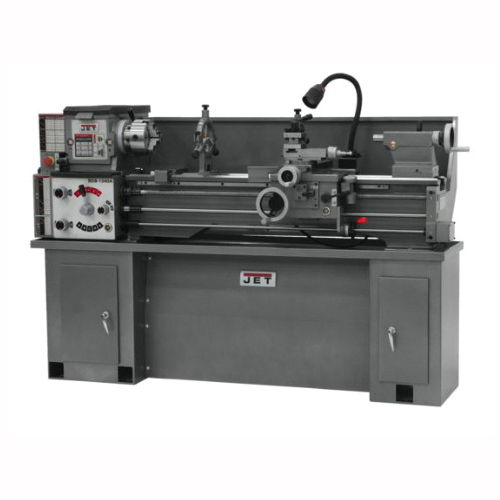

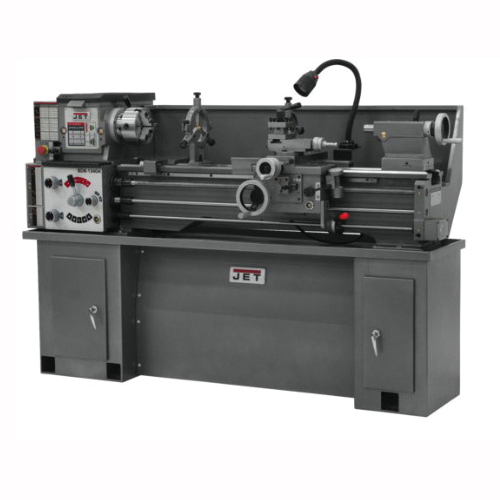

JET® 321102 Geared Head Bench Lathe With CBS-1340A Stand, 13 in Swing Over Bed, 7-25/32 in Swing Over Cross Slide, 43 in Distance Between Centers, #5 Morse Taper Spindle, 2 hp

  • TIEPN: JET 321102
  • MPN: 321102
  • UPC: 731325172768
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

JET geared head bench lathes feature an enclosed gearbox for smear, quiet operation. Precision roller bearings support the hardened and ground spindle resulting in tight tolerances.

JET® Bench Lathe, Geared Head, 13 in Swing Over Bed, 7-25/32 in Swing Over Cross Slide, 43 in Distance Between Centers, 7-3/8 in Bed Width, #3 Morse Taper Tailstock Taper, #5 Morse Taper Spindle, 70 to 2000 rpm Spindle Speed, 8 Spindle Speed, 6-5/16 in Cross Travel, 3-3/4 in Tailstock Spindle Travel, 35 in Carriage Travel, 2-11/16 in Compound Travel, 0.0129 in Maximum Cross Feed Rate per Revolution, 0.0374 in Maximum Longitudinal Feed Rate per Revolution, 2 hp, 230 VAC, 79 in L x 28-1/2 in W x 30 in H Dimensions

Bed Width      :      7-3/8 in
Carriage Travel      :      35 in
Compound Travel      :      2-11/16 in
Cross Travel      :      6-5/16 in
Dimensions      :      79 in L x 28-1/2 in W x 30 in H
Maximum Cross Feed Rate per Revolution      :      0.0129 in
Maximum Longitudinal Feed Rate per Revolution      :      0.0374 in
Number of Spindle Speeds      :      8
Spindle Speed      :      70 to 2000 rpm
Tailstock Spindle Travel      :      3-3/4 in
Tailstock Taper Size      :      #3 Morse Taper
Type      :      Geared Head
Voltage Rating      :      230 VAC
Swing Over Bed      :      13 in
Swing Over Cross Slide      :      7-25/32 in
Distance Between Centers      :      43 in
Spindle Size      :      #5 Morse Taper
Horsepower      :      2 hp
  • One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature
  • Metric change gear
  • 6 in 3-jaw direct mount chuck with top reversing jaws, 8 in 4-jaw independent chuck, 12 in face plate
  • Four way tool post, steady and follow rest
  • Splash guard, centers and headstock center sleeve
  • Threading dial, tool box and tools
  • videoVIDEO LINK https://www.youtube.com/watch?v=EVi_qjhSVDI
