Wilton® 10225

Wilton® 10225 Round Channel Combination Pipe and Bench Vise With Swivel Base, Serrated Jaw, 6 in Jaw Opening, 4-1/2 in W Hardened Steel Jaw, 4-3/4 in D Throat

  • TIEPN: WLT 10225
  • MPN: 10225
  • UPC: 019907102250
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

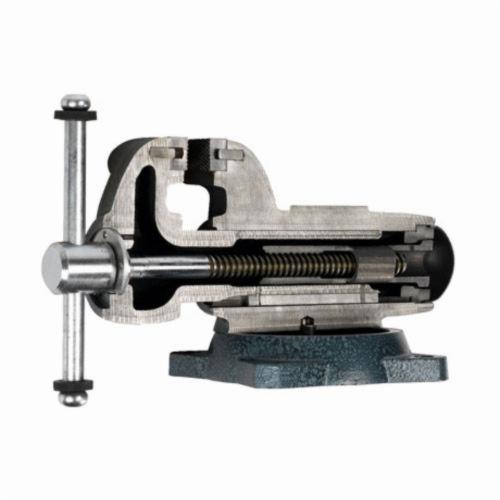

Proudly made in the USA, the Combination pipe and bench round channel vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut, the Combination pipe and bench round channel vise nut is anchored at the rear which provides straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly keeping debris out and lubrication in for a lifetime of smooth operation. For ultimate versatility, the Combination pipe and bench vise is equipped with main jaws, pipe jaws and a machined anvil work surface.

Wilton® Combination Pipe and Bench Vise, Round Channel, Serrated Jaw, 6 in Jaw Opening, 4-1/2 in Jaw Width, Hardened Steel Jaw, 4-3/4 in Throat Depth, 1/8 to 3-1/2 in Pipe, Swivel Base, Bench Mounting, 4 Mounting Points, 360 deg Rotation, Precision Slide Bar Handle, Ductile Iron

Base Type      :      Swivel
Handle Type      :      Precision Slide Bar
Material      :      Ductile Iron
Mounting Type      :      Bench
Number of Mounting Points      :      4
Pipe Capacity      :      1/8 to 3-1/2 in
Rotation Angle      :      360 deg
Type      :      Round Channel
Jaw Type      :      Serrated
Jaw Opening      :      6 in
Jaw Width      :      4-1/2 in
Jaw Material      :      Hardened Steel
Throat Depth      :      4-3/4 in
  • Self-centering pipe jaws hold up to 2.5 in pipe safely and securely
  • Enclosed construction keeps lubrication in and contaminants out
  • Locking swivel base with double lockdowns for non-slip hold in any position
  • Precession slide bar eliminates movement in the front jaw regardless of opened distance
  • Large anvil work surface
  • Hardened steel jaw, replaceable inserts are machine serrated for safe, sure grip under maximum torque
  • 60000 psi ductile iron body is virtually indestructible with 2X the strength of grey casted vises
  • Longer spindle nut ensures a lifetime of smooth movement and straight line pull
