TPI ACU30W

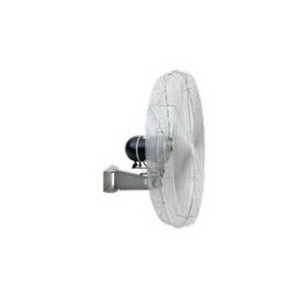

TPI ACU30W 1-Phase Standard Unassembled Air Circulator, 30 in Blade, 4300 cfm High, 3800 cfm Low Flow Rate, 120 VAC, 2.7 A

  • TIEPN: TPI ACU30-W
  • MPN: ACU30W
  • UPC: 686334796293
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

TPI Air Circulator, 1-Phase Standard Unassembled, 30 in Blade, 4300 cfm High, 3800 cfm Low, 1100 rpm High, 800 rpm Low Speed, 1/4 hp Power, 120 VAC, 2.7 A, 2 Speed, Pull Chain Control, Paddle Blade, Aluminum Blade, Split Capacitor Motor, Steel Housing Material, Wall Mounting, SJT 12 ft Cord, 33-1/2 in Dia x 14-1/2 in D Dimensions, Domestic

Blade Material      :      Aluminum
Blade Type      :      Paddle
Control Type      :      Pull Chain
Cord Type      :      SJT 12 ft
Dimensions      :      33-1/2 in Dia x 14-1/2 in D
Domestic/Import      :      Domestic
Housing Material      :      Steel
Motor Type      :      Split Capacitor
Mounting Type      :      Wall
Number of Speeds      :      2
Power Rating      :      1/4 hp
Speed      :      1100 rpm High, 800 rpm Low
Type      :      1-Phase Standard Unassembled
Blade Size      :      30 in
Flow Rate      :      4300 cfm High, 3800 cfm Low
Voltage Rating      :      120 VAC
Amperage Rating      :      2.7 A
  • Steel hub/spider aluminum paddle blades
  • Coated steel guards
  • Permanent split capacitor
  • Permanently lubricated
  • Motor drive
  • Standard industrial
  • Gray color
  • 52 to 78 in pole adjustment
  • Ball bearing, totally enclosed
