Iscar 5602383

Iscar 5602383 HELI2000 Single Sided Milling Insert, ADKT Insert, 1505 Insert, Carbide, Manufacturer's Grade: IC328, 85 deg Parallelogram Shape, Material Grade: M, P, S

  • TIEPN: IMI 5602383
  • MPN: 5602383
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

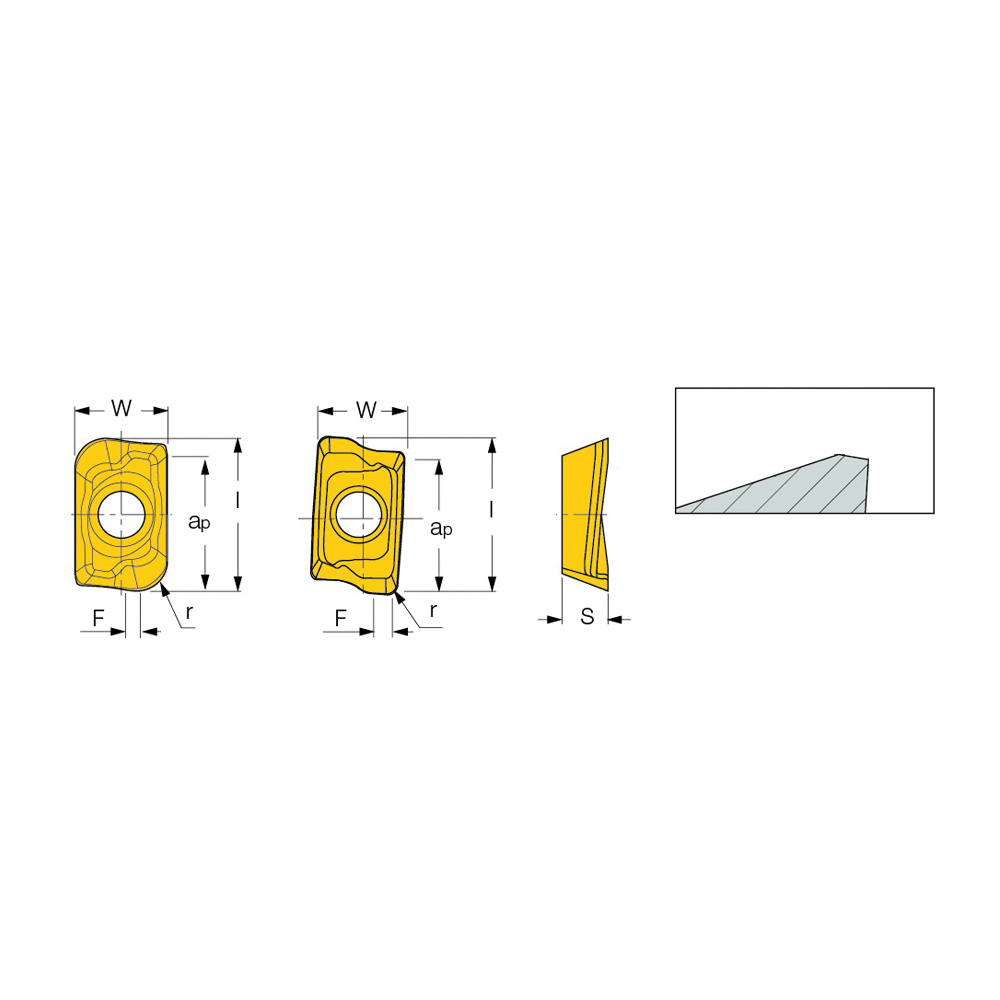

Iscar Milling Insert, Single Sided, Series: HELI2000, ADKT Insert, 1505 Insert, 85 deg Parallelogram Shape, 9.52 mm Inscribed Circle, 5.85 mm Thickness, 9.65 mm Width, 16.18 mm Length, PDR Chipbreaker, 0.8 mm Corner Radius, Manufacturer's Grade: IC328, ISO Code: HM90 ADKT 1505PDR IC328, Right Hand of Insert, Carbide, PVD-TiCN Coated, Material Grade: M, P, S, Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys Material Application

Chipbreaker      :      PDR
Corner Radius      :      0.8 mm
Finish      :      PVD-TiCN Coated
Hand of Insert      :      Right
ISO Code      :      HM90 ADKT 1505PDR IC328
Inscribed Circle      :      9.52 mm
Length      :      16.18 mm
Series      :      HELI2000
Thickness      :      5.85 mm
Type      :      Single Sided
Width      :      9.65 mm
Insert Style      :      ADKT
Insert Size      :      1505
Material      :      Carbide
Material Application      :      Steel, Stainless Steel Ferritic and Martensitic, Stainless Steel Austenitic and Duplex and High Temperature Alloys
Shape      :      85 deg Parallelogram
Material Grade      :      M, P, S
