Seco 00040583 Turning Insert, ANSI Code: SNMP432-M1 883, SNMG Insert, Material Grade: S, 120408 Insert, Squared Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Super Alloys and Titanium, Carbide, Manufacturer's Grade: 883

  • TIEPN: CBL 40583
  • MPN: 00040583
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

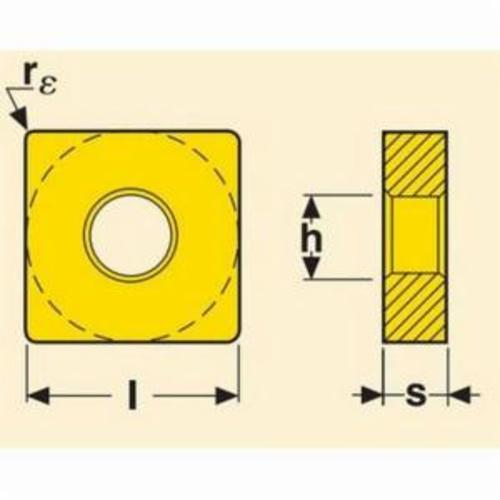

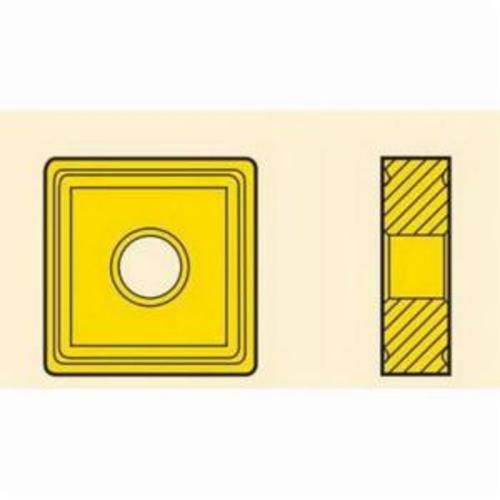

Seco Turning Insert, SNMG Insert, 120408 Insert, Squared, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.7 mm Width, 12.7 mm Length, 12 Seat, Negative Rake, M1 Chipbreaker, 0.8 mm Corner Radius, 5.15 mm Hole Dia, Manufacturer's Grade: 883, ANSI Code: SNMP432-M1 883, ISO Code: SNMG120408-M1 883, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: S, For Use On: Super Alloys and Titanium

ANSI Code      :      SNMP432-M1 883
Chipbreaker      :      M1
Corner Radius      :      0.8 mm
Finish      :      Uncoated
Hole Diameter      :      5.15 mm
ISO Code      :      SNMG120408-M1 883
Included Angle      :      90 deg
Inscribed Circle      :      12.7 mm
Length      :      12.7 mm
Maximum Depth of Cut      :      5 mm
Relief Angle      :      0 deg
Insert Style      :      SNMG
Material Grade      :      S
Insert Size      :      120408
Shape      :      Squared
Seat Size      :      12
Rake      :      Negative
Cutting Direction      :      Neutral
For Use On      :      Super Alloys and Titanium
Material      :      Carbide
