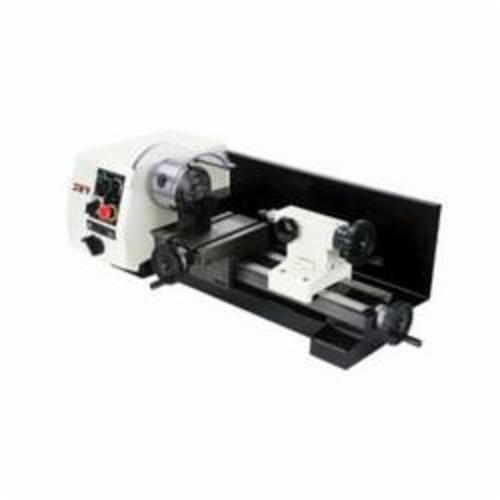

JET® Hobby Lathe, 5-1/2 in Swing Over Bed, 9-3/4 in Distance Between Centers, #1 Morse Taper Tailstock Taper, #2 Morse Taper Spindle, 100 to 2000 rpm Spindle Speed, 2-1/2 in Cross Travel, 7-1/16 in Carriage Travel, 115 VAC, 27 in L x 14 in W x 13 in H
| Carriage Travel |
: |
7-1/16 in |
| Cross Travel |
: |
2-1/2 in |
| Dimensions |
: |
27 in L x 14 in W x 13 in H |
| Spindle Speed |
: |
100 to 2000 rpm |
| Tailstock Taper Size |
: |
#1 Morse Taper |
| Voltage Rating |
: |
115 VAC |
| Swing Over Bed |
: |
5-1/2 in |
| Distance Between Centers |
: |
9-3/4 in |
| Spindle Size |
: |
#2 Morse Taper |
- Overload protection
- Tailstock has an MT-1 and is made from cast iron
- Lead screw is protected under the bed with auto-feed mechanism
- Cross slide has an industrial style bolt down heavy cast iron tool holder with calibrated feed
- Capable of cutting metric thread 0.5-1.25 mm pitch
- Capable of cutting inch thread 16-24 TPI
- Chuck guard with automatic on/off switch for safety
