Enerpac® SG11TMSTD

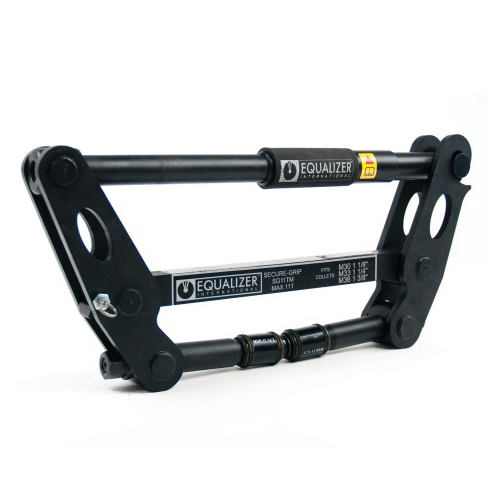

Enerpac® SG11TMSTD Secure Grip Flange Spreader Set

  • TIEPN: ENP SG11TMSTD
  • MPN: SG11TMSTD
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Enerpac® Flange Spreader Set, Secure Grip, 12.3 ton Pull Force, 3.54 in Spread, 20.3 in Overall Length, 9.8 in Overall Height

Overall Height      :      9.8 in
Overall Length      :      20.3 in
Pull Force      :      12.3 ton
Series      :      SG Series
Spread      :      3.54 in
Type      :      Secure Grip
  • The SG11TM secure grip bolt hole spreader can be used on all flange types with bolt hole sizes ranging from 30 to 39 mm
  • The collet holders are supplied with adjustable drive cones which can be adjusted outward from their central position allowing the tool to spread flanges apart and remove a spacer, wafer or butterfly valve
  • This mid end, mechanical model offers up to 12.3 imperial tons of spreading force
  • Spreading force of 24.6 imperial tons (220 kN) if used in pairs as recommended
  • Short collet holder sets (SCH) are available which can offer improved range of application
  • Collet holders can also be dismantled and inserted through bolt holes from opposite side
