Pramet 6751507

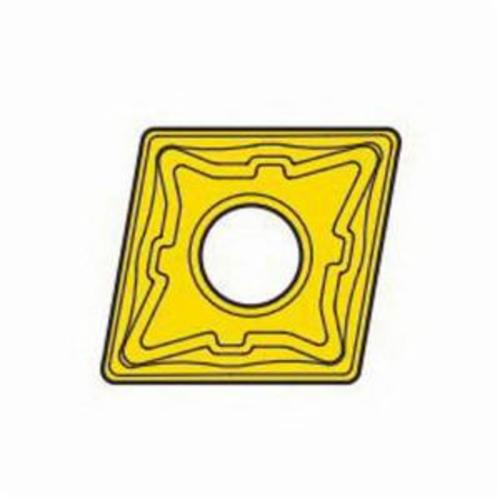

Pramet 6751507 Turning Insert Pramet, ANSI Code: CNMG 432-R:6630, CNMG Insert, Material Grade: K, M, P, S, 432 Insert, Diamond Shape, 12 Seat, Negative Rake, For Use On Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys, Carbide

  • TIEPN: PTD 6751507
  • MPN: 6751507
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Pramet Turning Insert Pramet, CNMG Insert, 432 Insert, Diamond, 8 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.9 mm Length, 12 Seat, Negative Rake, R Chipbreaker, 0.8 mm Corner Radius, 5.16 mm Hole Dia, Manufacturer's Grade: 6630, ANSI Code: CNMG 432-R:6630, ISO Code: CNMG 120408E-R:6630, 80 deg Included Angle, 0 deg Relief Angle, Carbide, CVD Coated, Material Grade: K, M, P, S, For Use On: Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys

ANSI Code      :      CNMG 432-R:6630
Chipbreaker      :      R
Corner Radius      :      0.8 mm
Finish      :      CVD Coated
Hole Diameter      :      5.16 mm
ISO Code      :      CNMG 120408E-R:6630
Included Angle      :      80 deg
Inscribed Circle      :      12.7 mm
Length      :      12.9 mm
Maximum Depth of Cut      :      8 mm
Relief Angle      :      0 deg
Thickness      :      4.76 mm
Insert Style      :      CNMG
Material Grade      :      K, M, P, S
Insert Size      :      432
Shape      :      Diamond
Seat Size      :      12
Rake      :      Negative
For Use On      :      Cast Iron, Stainless Steel, Steel and Titanium/Super Alloys
Material      :      Carbide
  • 6630 grade functionally gradient substrate
  • Relatively low content of cobalt binder phase
  • Highly versatile material with very good operational reliability
  • Medium and higher cutting speed
  • Continuous and interrupted cut
  • Unfavourable cutting conditions, continuous and interrupted cuts
