Louisville® FE7224-E03E55

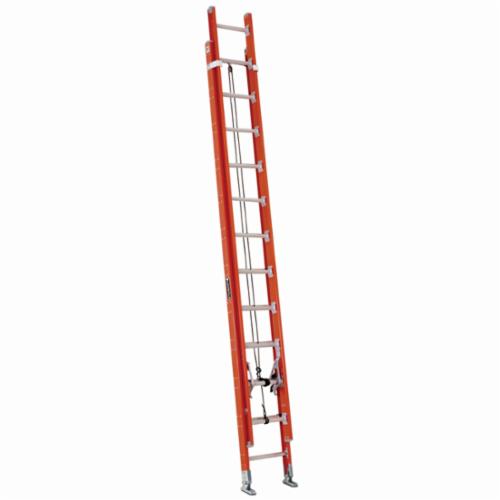

Louisville® FE7224-E03E55 FE7200 Extra Heavy Duty Multi-Section Professional Extension Ladder With Combination Pole Grip and Cable Hook, Front-Mounted Pulley, 24 ft OAL, ANSI Code: Type IA, 300 lb Load, Fiberglass

  • TIEPN: LLI FE7224-E03E55
  • MPN: FE7224-E03E55
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Louisville® Extension Ladder, Extra Heavy Duty Multi-Section Professional, Series: FE7200, 24 ft Overall Length, ANSI Code: Type IA, 300 lb, Fiberglass, 23 ft 6 in Maximum Working Length, 12 ft Section Length, 17-3/8 in Outside Shoe Base Width, Mar-Resistant Rail, Aluminum Swivel Safety Shoe

Maximum Working Length      :      23 ft 6 in
Outside Shoe Base Width      :      17-3/8 in
Rail Type      :      Mar-Resistant
Section Length      :      12 ft
Series      :      FE7200
Shoe Type      :      Aluminum Swivel Safety
Type      :      Extra Heavy Duty Multi-Section Professional
Overall Length      :      24 ft
ANSI Code      :      Type IA
Load Capacity      :      300 lb
Material      :      Fiberglass
  • Mar-resistant rail end caps
  • Outside slide guides
  • Aluminum rung connector plates
  • QuickLatch™ runglock system, patent 5429207
  • Aluminum swivel safety shoes with Full Metal Boot™
  • Non-conductive fiberglass extension ladder carries a 300 lb load capacity
  • Features fully serrated D-shape rungs for a slip-resistant surface, non-marring rail end caps, full metal boot and aluminum plate connection rungs
  • 3-1/4 in rail depth
  • 6-1/4 in stack height
  • 15 in base and 13-11/16 in fly inside width
  • 16-1/16 in fly outside width
  • 12 approximate cubes feet
  • 21 ft maximum extended height
  • 1-1/2 in step depth
  • 16 ft 11 in maximum standing height
  • 7 in approximate spread
  • 19-3/4 in bottom width
  • 12 in closed cubic feet
  • 149-1/2 in H x 19-3/4 in W x 7 in D closed dimension
  • 24 steps, a rigid plated steel V-shaped pole grip covered with rubber tread, combined with cable hook assembly, large diameter pulley sheave assembly mounted
