Precision Twist Drill 045610

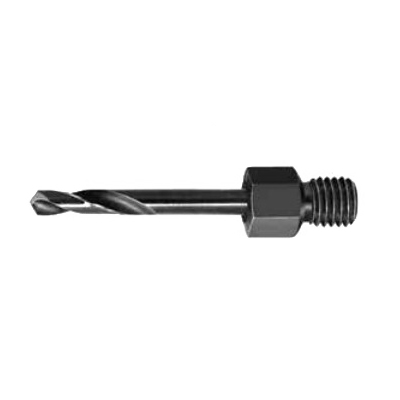

Precision Twist Drill 045610 TS18 Short Length Threaded Shank Drill, #10 Drill - Wire, 0.1935 in Drill - Decimal Inch, 1/4-28 Shank, 9/16 in D Cutting, HSS

  • TIEPN: PTD 045610
  • MPN: 045610
  • UPC: 086071456106
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Precision Twist Drill Threaded Shank Drill, Short Length, Series: TS18, Imperial, #10 Drill - Wire, 0.1935 in Drill - Decimal Inch, 1-1/4 in Overall Length, 9/16 in Cutting Depth, Spiral Flute, 9/16 in Flute Length, 1/4-28 Shank, Hex Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Steam Tempered, Dark Gray, Applicable Materials: Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials and Hard Materials

Color      :      Dark Gray
Cutting Direction      :      Right Hand
Cutting Edge Material      :      HSS
Drill Diameter Measurement System      :      Imperial
Finish      :      Steam Tempered
Flute Length      :      9/16 in
Flute Type      :      Spiral
Overall Length      :      1-1/4 in
Point Angle      :      135 deg
Point Type      :      Split
Series      :      TS18
Shank Type      :      Hex
Type      :      Short Length
Drill Size - Wire      :      #10
Drill Size - Decimal Inch      :      0.1935 in
Shank Size      :      1/4-28
Cutting Depth      :      9/16 in
Material      :      HSS
Applicable Materials      :      Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium, Synthetic Materials and Hard Materials
  • Steam oxide for increased wear resistance and lubricity
  • Shank design for drilling in confined spaces
  • Low thrust design self-centering split point for easier penetration
