Blackhawk™ by Proto® BW-1174

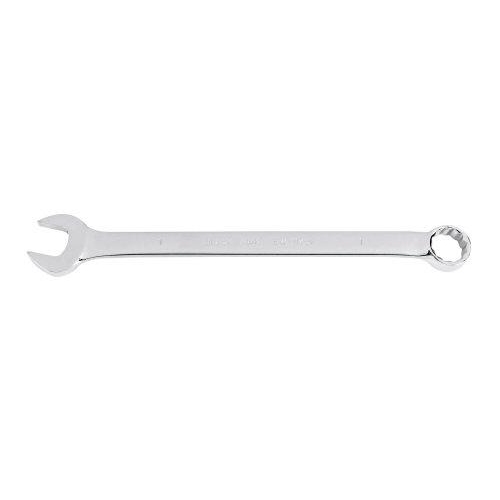

Blackhawk™ by Proto® BW-1174 Combination Wrench, Imperial, 1-5/16 in, 12 Points, 15 deg Offset, 18 in OAL, Steel, Satin, ASME B107.100

  • TIEPN: SBH BW-1174
  • MPN: BW-1174
  • UPC: 662679078003
  • Min. Order Qty: 1
  • Quantity Interval: 1
  • loading

Blackhawk™ by Proto® Combination Wrench, Measurement System: Imperial, Spline Wrench, 1-5/16 in Wrench Opening, 12 Points, 18 in Overall Length, 15 deg Offset, 1-7/8 in Open End Width, 3/4 in Open End Thickness, 2-45/64 in Box End Width, 9/16 in Box End Thickness, 15 deg Head, ASME B107.100 Specifications Met, Steel, Satin

Box End Thickness      :      9/16 in
Box End Width      :      2-45/64 in
Head Angle      :      15 deg
Open End Thickness      :      3/4 in
Open End Width      :      1-7/8 in
Wrench Type      :      Spline
Measurement System      :      Imperial
Wrench Opening      :      1-5/16 in
Number of Points      :      12
Offset Angle      :      15 deg
Overall Length      :      18 in
Material      :      Steel
Finish/Coating      :      Satin
Specifications Met      :      ASME B107.100
