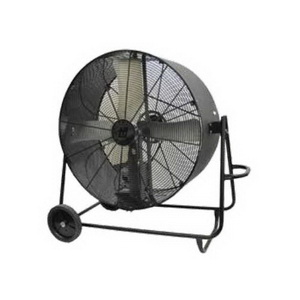

TPI Portable Blower, 1-Phase Belt Drive Standard, 120 VAC, 8 A, 1/2 hp, 14500 cfm Flow Rate, 1 Speed, 500 rpm Speed, 36 in Propeller, Aluminum Propeller, 3 Conductors, Polyethylene Housing Material, SJT 10 ft Cord, Open Drip-Proof Enclosure, Domestic
| Amperage Rating |
: |
8 A |
| Cord Type |
: |
SJT 10 ft |
| Enclosure Type |
: |
Open Drip-Proof |
| Housing Material |
: |
Polyethylene |
| Number of Conductors |
: |
3 |
| Number of Speeds |
: |
1 |
| Speed |
: |
500 rpm |
| Type |
: |
1-Phase Belt Drive Standard |
| Voltage Rating |
: |
120 VAC |
| Horsepower |
: |
1/2 hp |
| Flow Rate |
: |
14500 cfm |
| Propeller Size |
: |
36 in |
| Propeller Material |
: |
Aluminum |
| Domestic/Import |
: |
Domestic |
- Rocker switch on 120 VAC, 1-phase models
- 1-phase models, no cord on dual voltage models
- Aluminum, 4 paddle blade (48 in PB / PBS have steel blade)
- Spiral wire front and rear guards
- Corrosion and dent proof high density polyethylene housing
- 10 in Dia wheels
- Swivel model rotates 130 deg in 12-1/2 deg increments and locks in place with a steel locking pin
- External junction boxes on dual voltage models allow units to be wired for either voltage without removing guards
- Hazardous location models have explosion proof motors, metal housings and external junction boxes rated for class I, group D and class II, groups E, F and G
- Permanent split capacitor
- Ball bearing
- Permanently lubricated motor
- Floor mounting
- 14000 cfm/360 sq-ft area velocity profile
- Flow rate is measured 2 ft from face of fan
